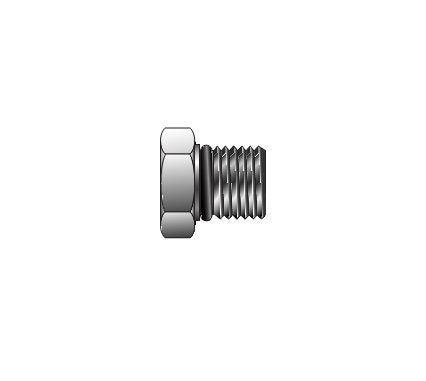

Parker Hex Head Plug P5ON Instrument Pipe Fitting
Parker Hex Head Plug P5ON Instrument Pipe Fitting
SKU:FIT-43528f
Premium Parker Hex Head Plug P5ON: Precision-engineered for leak-free industrial connections. ANSI compliant. Sizes 1/16"-2" NPT.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Parker Hex Head Plug P5ON Instrument Pipe Fitting
$32.99
Quantity: 1
Claim Your Seller Account
Parker Hex Head Plug P5ON Instrument Pipe Fitting
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hex Head Plug P5ON is a premium-grade instrument pipe fitting designed for precise and leak-free connections in industrial applications. Precision machined from high-quality materials, this fitting ensures outstanding performance and durability. Engineered for instrumentation applications, it meets stringent quality standards and is compliant with ANSI B31.1 and B31.3 codes for working pressures. Packaged in sealed plastic boxes, it offers cleanliness and protection. Size ranges from 1/16" to 2" NPT, with materials available in 316 Stainless Steel, Brass, and Steel. Meet your industrial connection needs with Parker's reliable Hex Head Plug P5ON.
Product Specifications

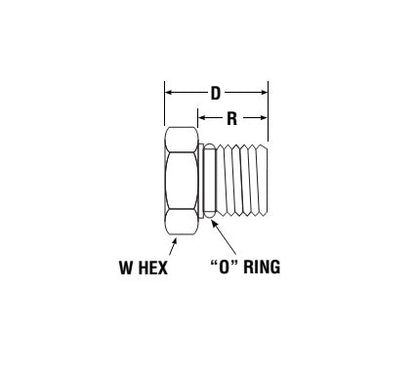

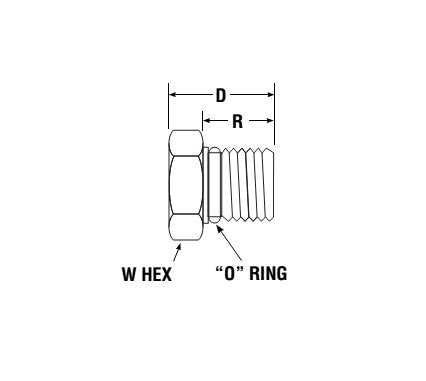

Dimensions Connection Type
BSPP
Dimensions D
.67 in
Dimensions D2 Drill
.20 in
Dimensions Interchanges With
4 PST
Dimensions L2
.41 in
Dimensions O Ring
3-904
Dimensions Port Thd Ununf 2a
7/16-20
Dimensions R
.36 in
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
