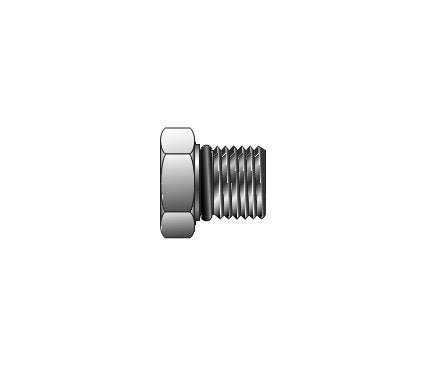

Parker Hex Head Plug P5ON - Straight Thread Adapter
Parker Hex Head Plug P5ON - Straight Thread Adapter
SKU:FIT-9c119b
Precision-engineered Hex Head Plug P5ON for leak-free connections in instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Hex Head Plug P5ON - Straight Thread Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Parker Hex Head Plug P5ON - Straight Thread Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hex Head Plug P5ON is a precision-engineered instrument pipe fitting suitable for a wide range of applications including process control and instrumentation connections. Manufactured to the highest quality standards in stainless steel and brass, this fitting offers leak-free connections and is designed to meet the demanding requirements of industrial environments. With features like Power Piping Code ANSI B31.1 compliance, National Pipe Taper (NPT) threads, and ASTM bar stock specifications, the Parker Hex Head Plug P5ON ensures reliability and performance in instrumentation applications.
Product Specifications

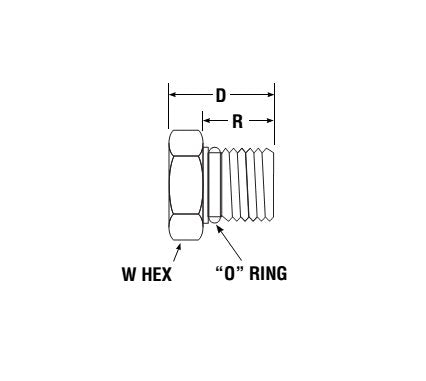

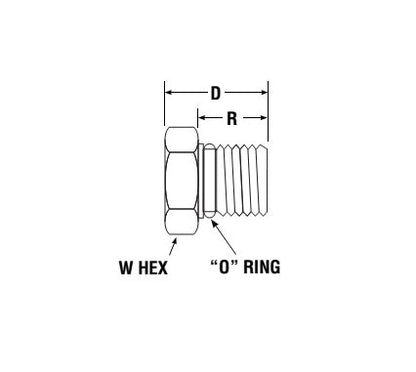

Dimensions Connection Type
BSPP
Dimensions D
.73 in
Dimensions D2 Drill
.30 in
Dimensions Interchanges With
6 PST
Dimensions L2
.44 in
Dimensions O Ring
3-906
Dimensions Port Thd Ununf 2a
9/16-18
Dimensions R
.39 in
Dimensions W Hex
11/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
