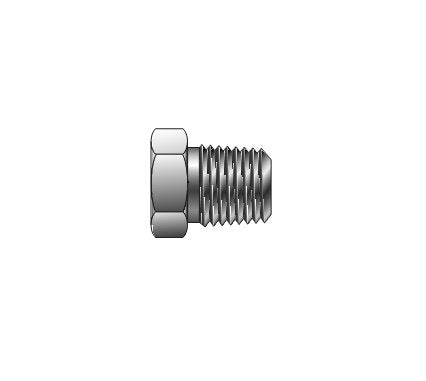

Parker Hex Head Plug PH for Fractional Tube - NPT 3/8
Parker Hex Head Plug PH for Fractional Tube - NPT 3/8
SKU:FIT-63d9b9
Reliable Parker Hex Head Plug PH for fractional tube, precision-made, leak-free connection with high working pressure, ideal for instrumentation applications.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Parker Hex Head Plug PH for Fractional Tube - NPT 3/8
$35.99
Quantity: 1
Claim Your Seller Account
Parker Hex Head Plug PH for Fractional Tube - NPT 3/8
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hex Head Plug PH for fractional tube is expertly crafted for leak-free connections in process, power, instrumentation, and industrial applications. Precision machined from top-quality materials, these fittings are engineered to exceed industry standards. With working pressures up to 7600 psig, they offer reliability and durability. Designed for ease of installation and maintenance, these Parker fittings are a perfect choice for critical instrumentation connections.
Product Specifications

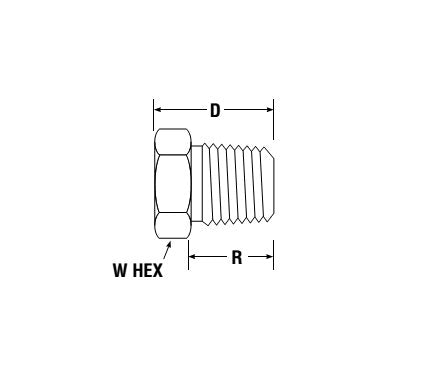

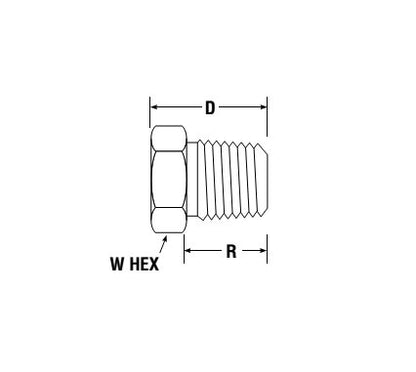

Dimensions Connection Type
NPT
Dimensions D
.78 in
Dimensions Npt Thread Male
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
7200 psig
Dimensions Working Pressure Steel
7600 psig
Dimensions W Hex
11/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
