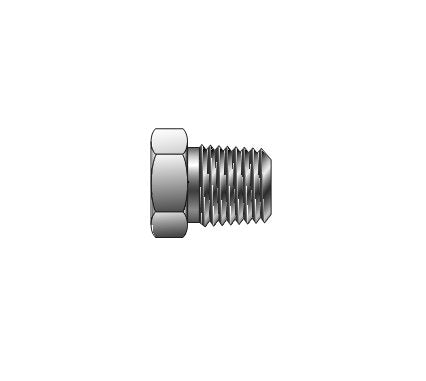

Parker Hex Head Plug PH for Fractional Tube - NPT Thread Male 3/4
Parker Hex Head Plug PH for Fractional Tube - NPT Thread Male 3/4
SKU:FIT-83802e
Precision machined Parker Hex Head Plug PH for leak-free connections in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Hex Head Plug PH for Fractional Tube - NPT Thread Male 3/4
$24.99
Quantity: 1
Claim Your Seller Account
Parker Hex Head Plug PH for Fractional Tube - NPT Thread Male 3/4
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial applications with Parker Hex Head Plug PH, precision machined for leak-free connections. These fittings are quality engineered to meet instrumentation standards, with a working pressure of up to 6800 psig in steel. Manufactured in the USA with strict quality controls, the fittings are available in various materials, sizes, and configurations to suit your specific needs.
Product Specifications

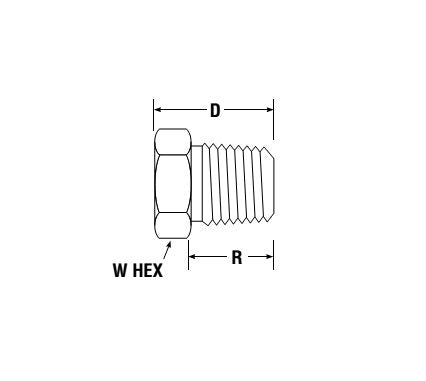

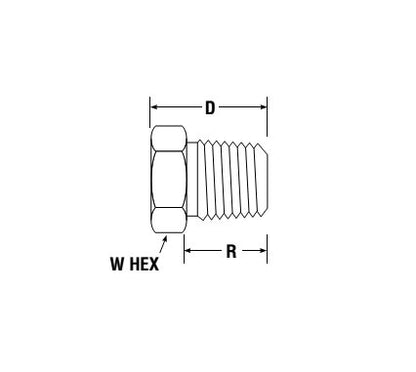

Dimensions Connection Type
NPT
Dimensions D
1.06 in
Dimensions Npt Thread Male
3/4
Dimensions R
.75 in
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
6400 psig
Dimensions Working Pressure Steel
6800 psig
Dimensions W Hex
1 1/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
