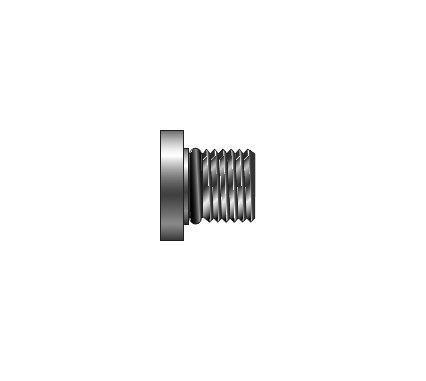

Parker Hollow Hex Plug HP5ON - BSPP 3/4-16, 5/16 in Internal Hex
Parker Hollow Hex Plug HP5ON - BSPP 3/4-16, 5/16 in Internal Hex
SKU:FIT-5fa1a4
Precision-engineered Parker Hollow Hex Plug for leak-free connections in instrumentation applications. Meets ANSI standards for reliability.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug HP5ON - BSPP 3/4-16, 5/16 in Internal Hex
$19.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug HP5ON - BSPP 3/4-16, 5/16 in Internal Hex
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug HP5ON is designed for precision instrumentation applications, ensuring leak-free connections in process, power, and industrial settings. Made from high-quality stainless steel and brass, these ISO Conversion Fittings meet ASTM specifications for strength and durability. With National Pipe Taper threads and meticulous engineering, these fittings guarantee reliability and compliance with ANSI standards for pressure calculations and pipe threads, making them ideal for institutional and government procurement needs.
Product Specifications

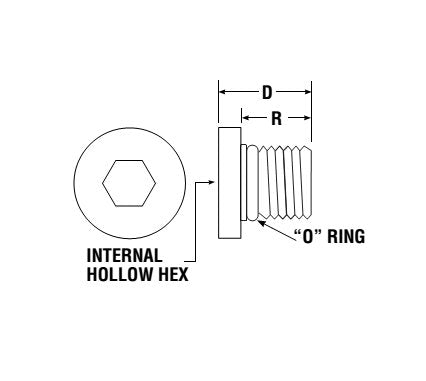

Dimensions Connection Type
BSPP
Dimensions D
.58 in
Dimensions Interchanges With
8 HPST
Dimensions Internal Hex
5/16 in
Dimensions O Ring
3-908
Dimensions Port Thd Ununf 2a
3/4-16
Dimensions R
.44 in
Dimensions X Dia
.88 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in_stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
