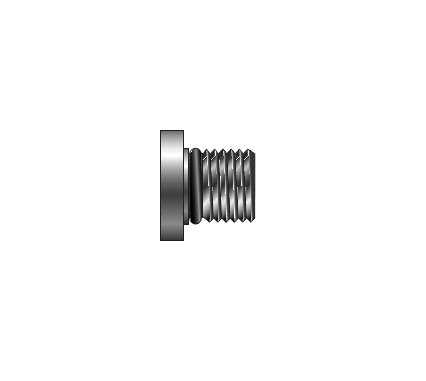

Parker Hollow Hex Plug HP5ON for ISO Conversions
Parker Hollow Hex Plug HP5ON for ISO Conversions
SKU:FIT-fa61e8
Precision-engineered Parker Hex Plug HP5ON for leak-free instrumentation connections in process and industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug HP5ON for ISO Conversions
$24.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug HP5ON for ISO Conversions
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug HP5ON is engineered for precision instrumentation applications, ensuring leak-free connections in process control and industrial settings. Manufactured with high-quality materials, this fitting meets stringent ASTM specifications and features an internal hex of 5/8 inches, making it easy to install and dismantle. Packaged in sealed, clear plastic shrink-wrapped boxes, it guarantees cleanliness and conforms to Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3 for reliable performance. With options in stainless steel, brass, and steel, this Parker fitting is designed to exceed industry standards.
Product Specifications

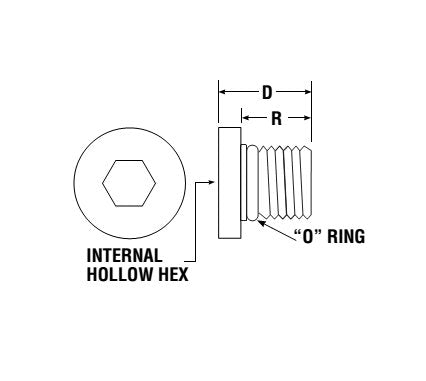

Dimensions Connection Type
BSPP
Dimensions D
.77 in
Dimensions Interchanges With
16 HPST
Dimensions Internal Hex
5/8 in
Dimensions O Ring
3-916
Dimensions Port Thd Ununf 2a
1 5/16-12
Dimensions R
.59 in
Dimensions X Dia
1.50 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in_stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
