Parker Hollow Hex Plug HP5ON - Leak-Free ISO Conversion Fitting
Parker Hollow Hex Plug HP5ON - Leak-Free ISO Conversion Fitting
SKU:FIT-6f6986
Precisely engineered Parker Hollow Hex Plug HP5ON for leak-free connections, stainless steel & brass, ANSI standards compliant.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug HP5ON - Leak-Free ISO Conversion Fitting
$9.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug HP5ON - Leak-Free ISO Conversion Fitting
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug HP5ON is meticulously crafted for precision and reliability in process control and instrumentation applications. Manufactured to the highest quality standards, this ISO conversion fitting is designed for seamless leak-free connections. Crafted from stainless steel and brass, it features an internal hex, ANSI B1.20.1 NPT threads, and exceeds ANSI B31.1 and B31.3 requirements. Packaged in sealed, clear boxes, this fitting ensures cleanliness and durability. Ideal for industrial, power, and instrumentation settings.

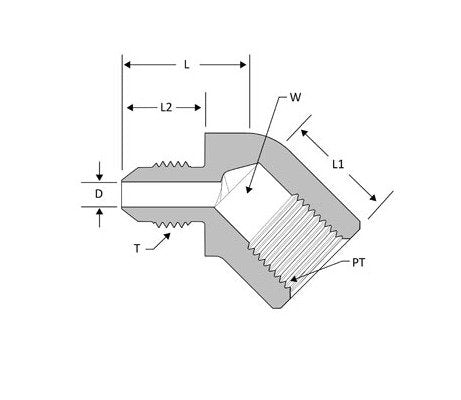

Product Specifications
Dimensions Connection Type
BSPP
Dimensions D
.47 in
Dimensions Interchanges With
4 HPST
Dimensions Internal Hex
3/16 in
Dimensions O Ring
3-904
Dimensions Port Thd Ununf 2a
7/16-20
Dimensions R
.36 in
Dimensions X Dia
.56 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in_stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
