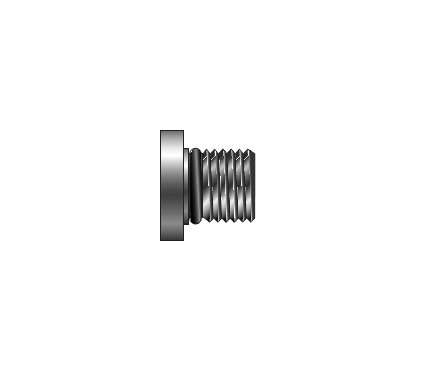

Parker Hollow Hex Plug HP5ON - Straight Thread Adapter
Parker Hollow Hex Plug HP5ON - Straight Thread Adapter
SKU:FIT-73fe7d
Precision-engineered Parker HP5ON Hollow Hex Plug for leak-free instrumentation connections. Compliant with ANSI standards, durable stainless steel and brass construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug HP5ON - Straight Thread Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug HP5ON - Straight Thread Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug HP5ON is a precision-engineered straight thread adapter designed for instrumentation applications. Manufactured from high-quality materials like 316 stainless steel and brass, this leak-free fitting meets stringent quality standards. With features such as rolled male threads for extra strength and compatibility with various pipe and tube sizes, it ensures reliable connections. Packaged in sealed, clear plastic shrink-wrapped boxes, it maintains cleanliness and durability in industrial settings. Compliant with ANSI standards, including B31.1 and B31.3, for working pressures and thread requirements, this Parker HP5ON plug is ideal for process control and instrumentation applications.
Product Specifications

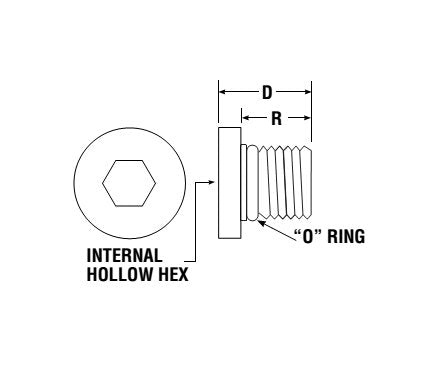

Dimensions Connection Type
BSPP
Dimensions D
.77 in
Dimensions Interchanges With
12 HPST
Dimensions Internal Hex
9/16 in
Dimensions O Ring
3-912
Dimensions Port Thd Ununf 2a
1 1/16-12
Dimensions R
.59 in
Dimensions X Dia
1.25 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in_stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
