Parker Hollow Hex Plug PHH - Instrument Pipe Fitting
Parker Hollow Hex Plug PHH - Instrument Pipe Fitting
SKU:FIT-b29817
Precision-engineered Parker Hollow Hex Plug PHH for leak-free connections in industrial applications. Steel/brass construction, multiple sizes/materials, ANSI standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug PHH - Instrument Pipe Fitting
$14.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug PHH - Instrument Pipe Fitting
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

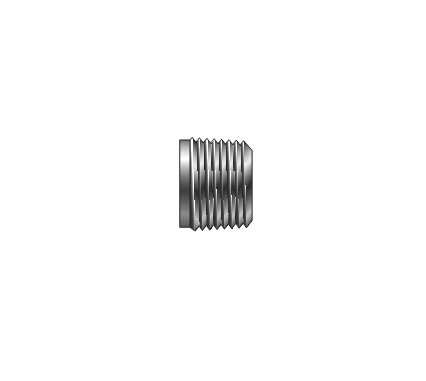

The Parker Hollow Hex Plug PHH is a precision-engineered instrument pipe fitting designed for leak-free connections in various industrial applications. Manufactured to the highest quality standards, this fitting ensures reliability and durability. Made from steel and brass materials, with options for special orders, it offers a working pressure range suitable for process control and instrumentation connections. Packaged in sealed boxes, meeting ANSI standards, and available in multiple sizes and materials, this fitting is ideal for demanding instrumentation applications.
Product Specifications
Dimensions Connection Type
NPT

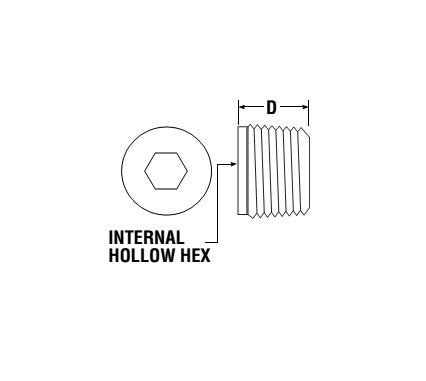

Dimensions D
.47 in
Dimensions Npt Thread Male
3/8
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
7200 psig
Dimensions Working Pressure Steel
7600 psig
Dimensions W Internal Hex
5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
