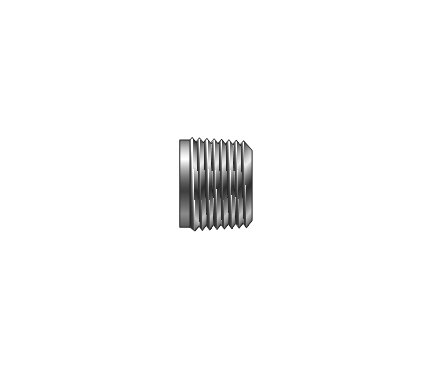

Parker Hollow Hex Plug PHH - Instrumentation Pipe Fitting
Parker Hollow Hex Plug PHH - Instrumentation Pipe Fitting
SKU:FIT-6655d3
Precision-engineered Parker Hollow Hex Plug PHH for leak-free instrumentation connections in process and industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug PHH - Instrumentation Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug PHH - Instrumentation Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug PHH is a precision-engineered instrumentation pipe fitting designed for process, power, and industrial applications. Manufactured to the highest quality standards in steel and brass materials, this fitting ensures leak-free connections with working pressures ranging from 3800 to 6800 psig. Engineered with precision machining from forgings and bar stock, it complies with ANSI standards and boasts a wide size range from 1/16" to 2" NPT. Packaged for cleanliness in clear plastic shrink-wrapped boxes, this fitting is ideal for instrumentation connections and meets stringent industry requirements.
Product Specifications
Dimensions Connection Type
NPT

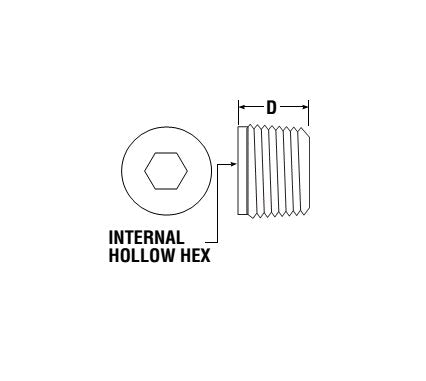

Dimensions D
.62 in
Dimensions Npt Thread Male
3/4
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
6400 psig
Dimensions Working Pressure Steel
6800 psig
Dimensions W Internal Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
