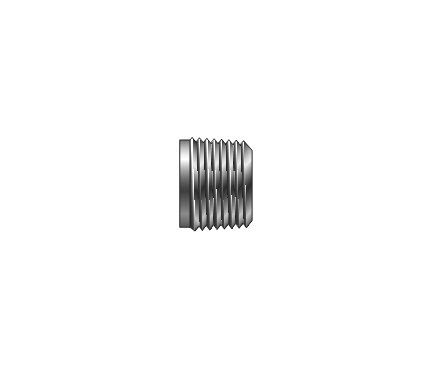

Parker Hollow Hex Plug PHH NPT Fitting
Parker Hollow Hex Plug PHH NPT Fitting
SKU:FIT-c2a5de
Precision-engineered Parker Hollow Hex Plug PHH NPT Fitting for leak-free connections in instrumentation applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug PHH NPT Fitting
$14.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug PHH NPT Fitting
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug PHH NPT Fitting is engineered for precision and reliability in process, power, instrumentation, and industrial applications. Crafted from high-quality steel and brass, this fitting ensures leak-free connections and optimal performance. Designed to meet rigorous quality standards, the fitting is available in various sizes with superior working pressures. With NPT threads exceeding ANSI requirements and quality materials like 316 stainless steel, Brass, and Steel, this fitting is ideal for instrumentation connections.
Product Specifications
Dimensions Connection Type
NPT

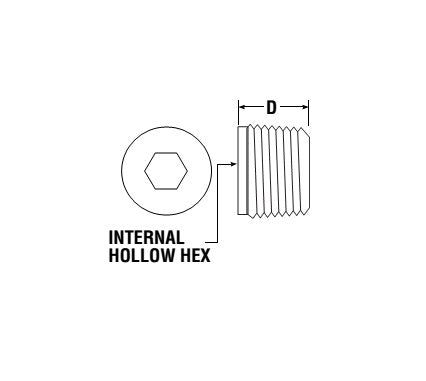

Dimensions D
.47 in
Dimensions Npt Thread Male
1/4
Dimensions Working Pressure Brass
4100 psig
Dimensions Working Pressure Stainless Steel
7500 psig
Dimensions Working Pressure Steel
8000 psig
Dimensions W Internal Hex
1/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
