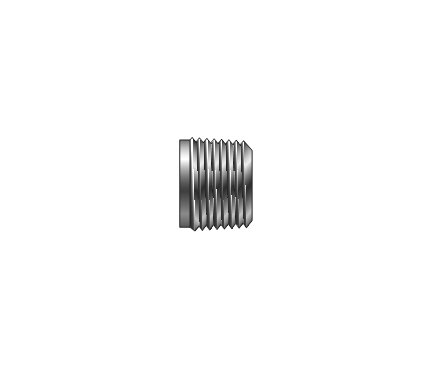

Parker Hollow Hex Plug PHH - NPT Male 1/16
Parker Hollow Hex Plug PHH - NPT Male 1/16
SKU:FIT-54a3ce
Parker Hollow Hex Plug PHH: Precision-machined leak-free fittings for instrumentation connections with superior performance and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug PHH - NPT Male 1/16
$29.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug PHH - NPT Male 1/16
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial applications with Parker's Hollow Hex Plug PHH. These leak-free fittings are meticulously engineered from high-quality steel and brass, meeting the stringent ASTM standards. With working pressures up to 10500psig, these precision-machined fittings are ideal for instrumentation connections, ensuring reliable performance in process control applications. Packaged in sealed boxes for cleanliness and exceeding industry standards, Parker Hollow Hex Plug PHH offers durability and precision you can trust.
Product Specifications
Dimensions Connection Type
NPT

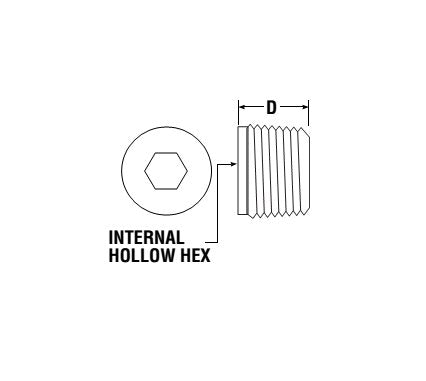

Dimensions D
.30 in
Dimensions Npt Thread Male
1/16
Dimensions Working Pressure Brass
6000 psig
Dimensions Working Pressure Stainless Steel
10000 psig
Dimensions Working Pressure Steel
10500 psig
Dimensions W Internal Hex
5/32 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
