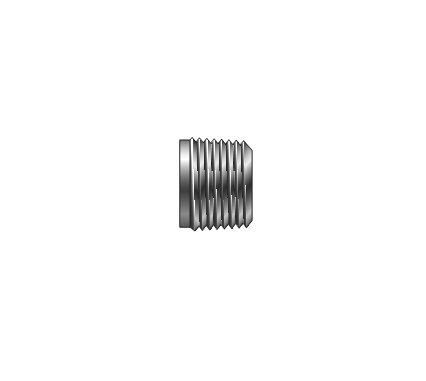

Parker Hollow Hex Plug PHH - NPT Thread Male, 5/8in W Internal Hex
Parker Hollow Hex Plug PHH - NPT Thread Male, 5/8in W Internal Hex
SKU:FIT-528a16
Precision-engineered Parker Hollow Hex Plug for leak-free instrumentation connections. NPT threads, 2700-4900 psig working pressure, steel/brass/stainless steel options.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Hollow Hex Plug PHH - NPT Thread Male, 5/8in W Internal Hex
$24.99
Quantity: 1
Claim Your Seller Account
Parker Hollow Hex Plug PHH - NPT Thread Male, 5/8in W Internal Hex
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hollow Hex Plug PHH is meticulously engineered for leak-free connections in process, power, instrumentation, and industrial applications. Precision machined to the highest quality standards, this fitting boasts a working pressure of 2700-4900 psig (based on material) and is available in steel, brass, and stainless steel variants. Packaged in sealed, clear plastic shrink-wrapped boxes for cleanliness, this fitting exceeds ANSI standards with NPT threads and ensures durability and reliability for instrumentation connections.
Product Specifications

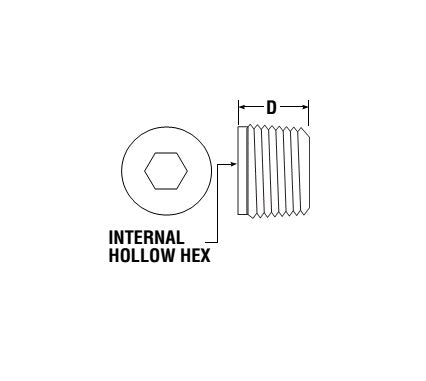

Dimensions Connection Type
NPT
Dimensions D
.77 in
Dimensions Npt Thread Male
1
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
4600 psig
Dimensions Working Pressure Steel
4900 psig
Dimensions W Internal Hex
5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
