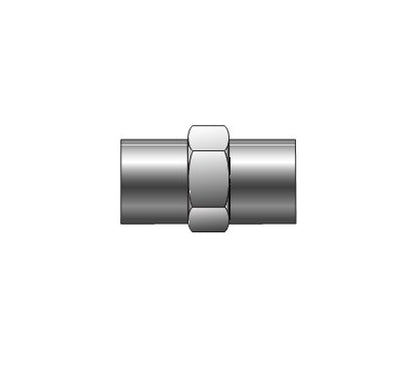

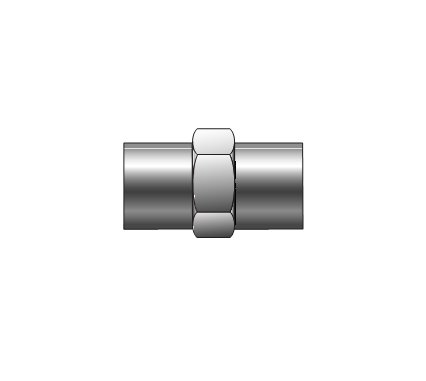

Parker Instrumentation Female Hex Coupling (FHC)
Parker Instrumentation Female Hex Coupling (FHC)
SKU:FIT-c34d53
Precision-engineered Female Hex Coupling (FHC) for leak-free connections in critical applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Instrumentation Female Hex Coupling (FHC)
$29.99
Quantity: 1
Claim Your Seller Account
Parker Instrumentation Female Hex Coupling (FHC)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Instrumentation Female Hex Coupling (FHC) is a precision-engineered fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured to rigorous quality standards, this coupling offers a range of sizes, materials, and configurations to suit various needs. Crafted in the USA with a focus on quality control, these fittings meet the demands of critical applications, making them a reliable choice for institutional buyers seeking top-notch performance and durability.
Product Specifications

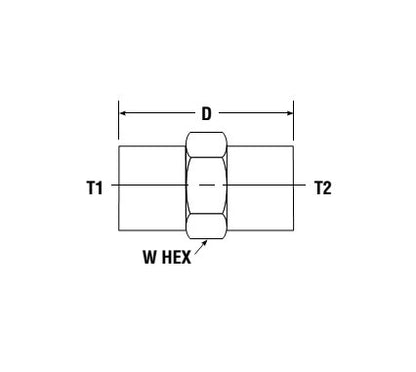

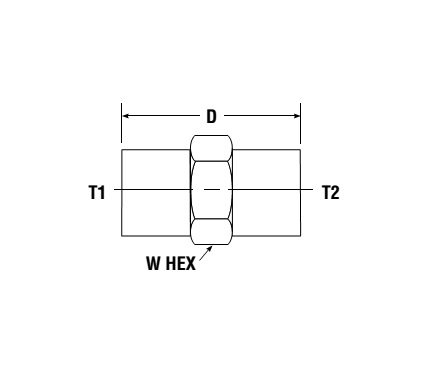

Dimensions Connection Type
FNPT to FNPT
Dimensions D
1.44 in
Dimensions Npt Thread Male T1
1
Dimensions Npt Thread Male T2
1/8
Dimensions Working Pressure Brass
3100 psig
Dimensions Working Pressure Stainless Steel
4500 psig
Dimensions Working Pressure Steel
4800 psig
Dimensions W Hex
1 5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
