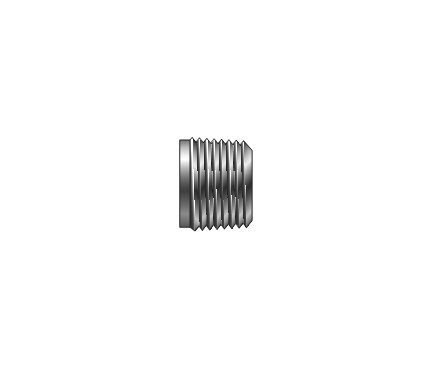

Parker Instrumentation Hollow Hex Plug PHH
Parker Instrumentation Hollow Hex Plug PHH
SKU:FIT-723775
Precision-engineered Parker Instrumentation Hollow Hex Plug PHH for leak-free connections in critical applications. Available in various materials and sizes.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Parker Instrumentation Hollow Hex Plug PHH
$12.99
Quantity: 1
Claim Your Seller Account
Parker Instrumentation Hollow Hex Plug PHH
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Instrumentation Hollow Hex Plug PHH is a precision-engineered pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured to the highest quality standards, these fittings come in a wide range of sizes and materials, including steel and brass. From its precision machining to its high working pressures, this fitting is ideal for critical instrumentation connections. Packaged in sealed, clear plastic shrink-wrapped boxes for cleanliness, it meets ANSI standards and offers superior performance.
Product Specifications

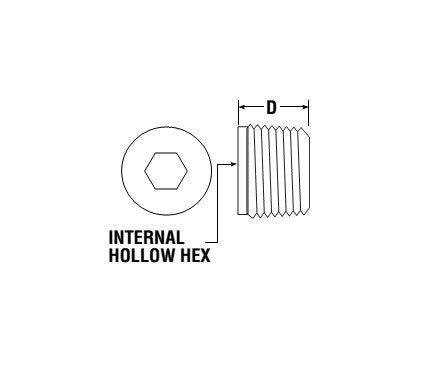

Dimensions Connection Type
NPT
Dimensions D
.61 in
Dimensions Npt Thread Male
1/2
Dimensions Working Pressure Brass
3900 psig
Dimensions Working Pressure Stainless Steel
6600 psig
Dimensions Working Pressure Steel
7000 psig
Dimensions W Internal Hex
3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
