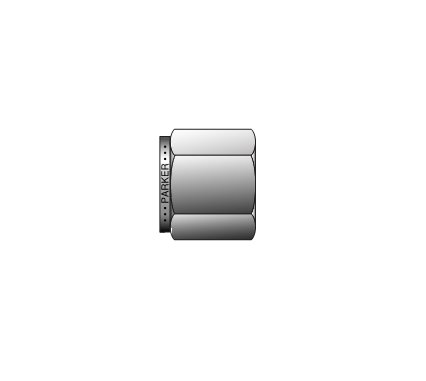

Parker Instrumentation Pipe Cap CP - 3/8" FNPT Thread, Brass, Steel, Stainless Steel
Parker Instrumentation Pipe Cap CP - 3/8" FNPT Thread, Brass, Steel, Stainless Steel
SKU:FIT-63b35a
Parker's precision-engineered Instrumentation Pipe Cap CP ensures leak-free connections for process, power & instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Instrumentation Pipe Cap CP - 3/8" FNPT Thread, Brass, Steel, Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Parker Instrumentation Pipe Cap CP - 3/8" FNPT Thread, Brass, Steel, Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Instrumentation Pipe Cap CP delivers leak-free connections essential for process, power, instrumentation, and industrial applications. Precision machined from high-quality materials, this fitting ensures reliability and durability. Designed for instrumentation applications, it adheres to stringent quality standards. With working pressures up to 5600 psig, this fitting meets the power piping code ANSI B31.1 and refiner piping code ANSI B31.3.
Product Specifications

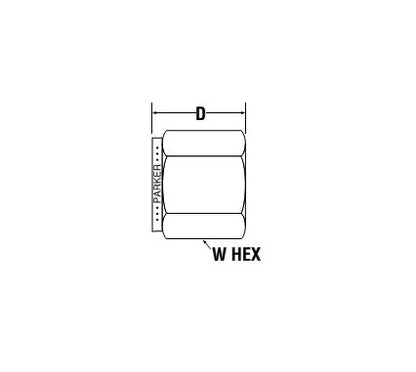

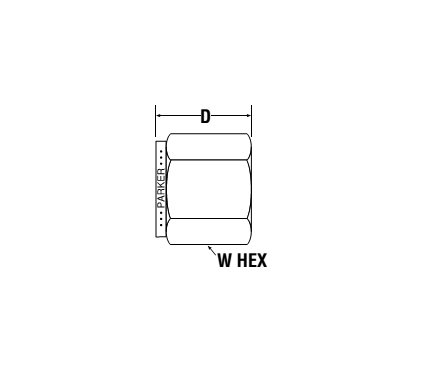

Dimensions Connection Type
FNPT
Dimensions D
1.03 in
Dimensions Npt Thread Female
3/8
Dimensions Working Pressure Brass
3500 psig
Dimensions Working Pressure Stainless Steel
5300 psig
Dimensions Working Pressure Steel
5600 psig
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
