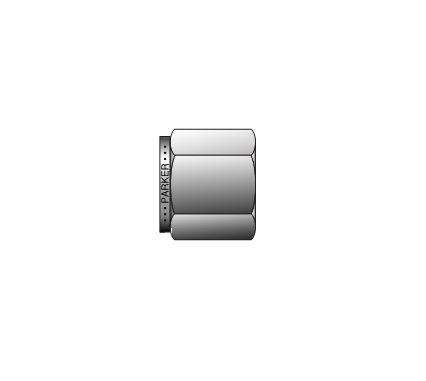

Parker Instrumentation Pipe Cap CP - FNPT 1/2"
Parker Instrumentation Pipe Cap CP - FNPT 1/2"
SKU:FIT-61eadc
Precision-engineered Parker Pipe Cap CP for leak-free connections in instrumentation applications. Steel, brass, and stainless steel options available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Instrumentation Pipe Cap CP - FNPT 1/2"
$24.99
Quantity: 1
Claim Your Seller Account
Parker Instrumentation Pipe Cap CP - FNPT 1/2"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Instrumentation Pipe Cap CP is a premium quality fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Precision machined from high-grade materials, this fitting is engineered for instrumentation applications and provides exceptional performance under varying pressures. Packaged in sealed, clear plastic shrink-wrapped boxes, it meets stringent quality standards such as ANSI B31.1 and ANSI B31.3. Available in steel, brass, and stainless steel, this fitting offers versatility and reliability for a wide range of applications.
Product Specifications
Dimensions Connection Type
FNPT

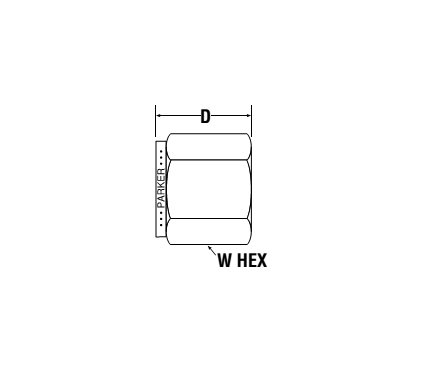

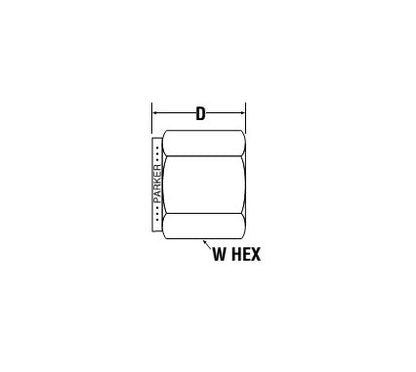

Dimensions D
1.34 in
Dimensions Npt Thread Female
1/2
Dimensions Working Pressure Brass
3600 psig
Dimensions Working Pressure Stainless Steel
5200 psig
Dimensions Working Pressure Steel
5500 psig
Dimensions W Hex
1 1/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
