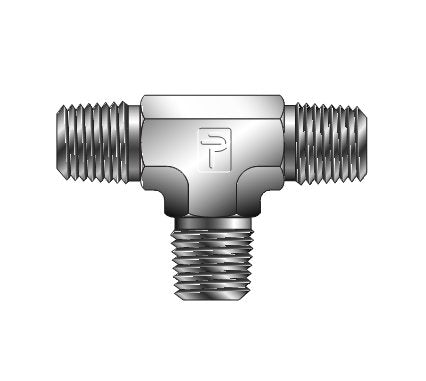

Parker Instrumentation Pipe Fittings Male Tee MT
Parker Instrumentation Pipe Fittings Male Tee MT
SKU:FIT-83420c
Precision-engineered Parker Instrumentation Male Tee MT for leak-free connections in industrial applications. Made in the USA.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Parker Instrumentation Pipe Fittings Male Tee MT
$39.99
Quantity: 1
Claim Your Seller Account
Parker Instrumentation Pipe Fittings Male Tee MT
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Instrumentation Male Tee MT is a precision-engineered fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured to the highest quality standards, these fittings are available in a range of sizes, materials, and configurations. Made in the USA, these fittings meet stringent quality control requirements, ensuring reliability and performance. Ideal for applications requiring precision and durability.
Product Specifications

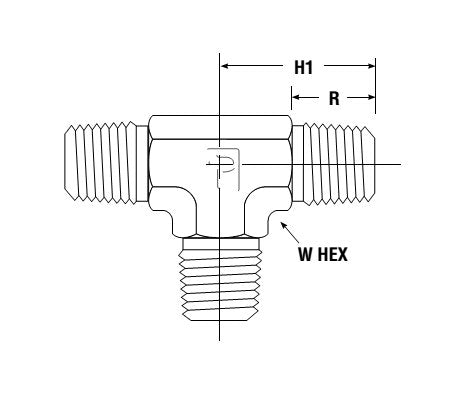

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
1.22 in
Dimensions Npt Thread Male
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
7200 psig
Dimensions Working Pressure Steel
7600 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
