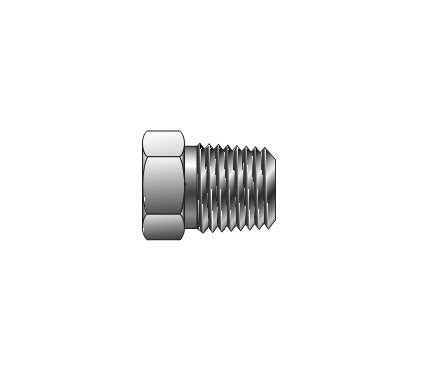

Parker Instrumentation Reducing Bushing RB
Parker Instrumentation Reducing Bushing RB
SKU:FIT-972e8f
Precision-engineered Reducing Bushing RB for leak-free connections in instrumentation and industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Instrumentation Reducing Bushing RB
$24.99
Quantity: 1
Claim Your Seller Account
Parker Instrumentation Reducing Bushing RB
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Instrumentation Reducing Bushing RB is meticulously engineered to provide leak-free connections essential for process, power, instrumentation, and industrial applications. Crafted with precision from high-quality materials, these fittings meet stringent quality standards. Featuring a variety of sizes, materials, and configurations, these Parker fittings are a reliable choice for seamless operations in diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

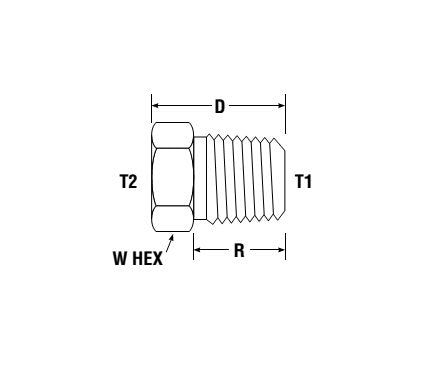

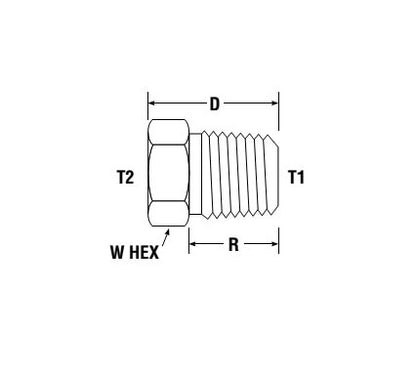

Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.36 in
Dimensions Npt Thread Female T2
1/8
Dimensions Npt Thread Male T1
1
Dimensions R
.94 in
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
4600 psig
Dimensions Working Pressure Steel
4900 psig
Dimensions W Hex
1 3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
