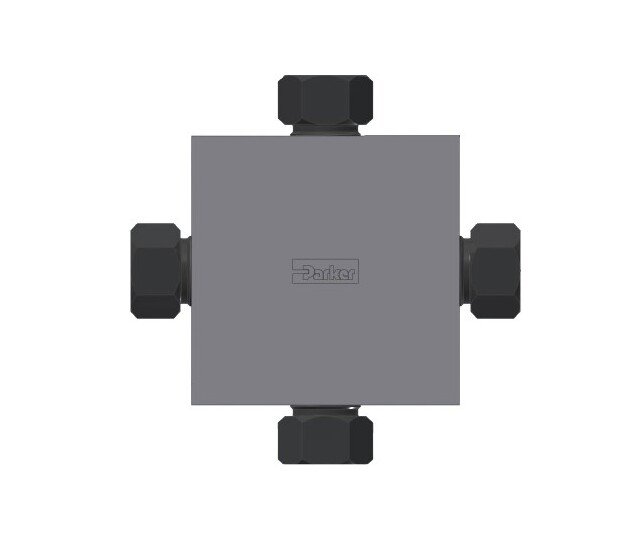

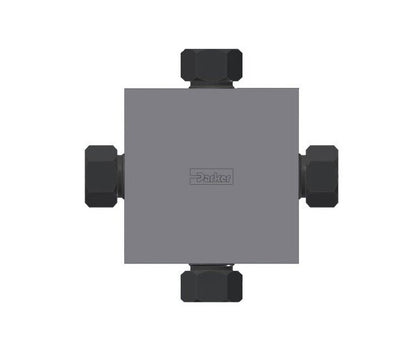

Parker KBMP7 MPI™ Union Cross Fitting
Parker KBMP7 MPI™ Union Cross Fitting
SKU:FIT-04f339
High-quality Parker KBMP7 MPI™ Union Cross Fitting for secure and gas-tight medium-pressure connections up to 15,000 psi. ASME Standards compliant with corrosion-resistant materials for durability.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Parker KBMP7 MPI™ Union Cross Fitting
$54.99
Quantity: 1
Claim Your Seller Account
Parker KBMP7 MPI™ Union Cross Fitting
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker KBMP7 MPI™ Union Cross is a high-quality compression fitting designed for medium-pressure applications up to 15,000 psi. Developed by Parker Hannifin, a trusted name in the industry, this fitting ensures secure and gas-tight connections. Made for ease of installation, each fitting comes complete with ferrules and compression gland nut. The use of corrosion-resistant materials, such as 316 SS or optional 2507 Super Duplex, guarantees durability and reliability. With features like front and back ferrules for sealing, a longer thread area for enhanced pressure resistance, and molybdenum disulfide-coated inverted nut for easier assembly, this fitting meets the stringent ASME Standards for quality and safety. Suitable for a wide range of applications, including those in off-shore oil and gas exploration, research labs, and other industrial facilities, the Parker KBMP7 MPI™ Union Cross is the go-to choice for your medium-pressure connection needs.
Product Specifications

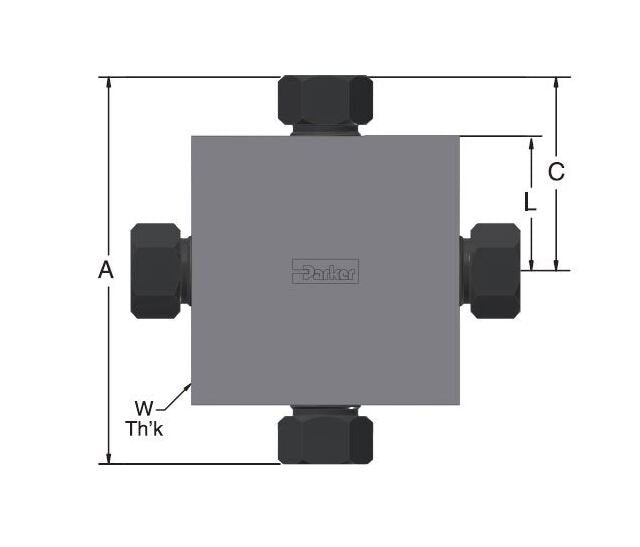

Dimensions A
7.26 in
Dimensions C
3.63 in
Dimensions Connection Type
MPI™ x MPI™ x MPI™ x MPI™
Dimensions L
2.50 in
Dimensions Mpi Size
1
Dimensions W Thk
1 3/4 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
