High-performance Parker MAB Double Block and Bleed Ball Valves offering 15000 psi MAWP and 500°F temperature range. Ideal for severe service applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Parker MAB Double Block and Bleed Ball Valves
$129.99
Quantity: 1
Claim Your Seller Account
Parker MAB Double Block and Bleed Ball Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

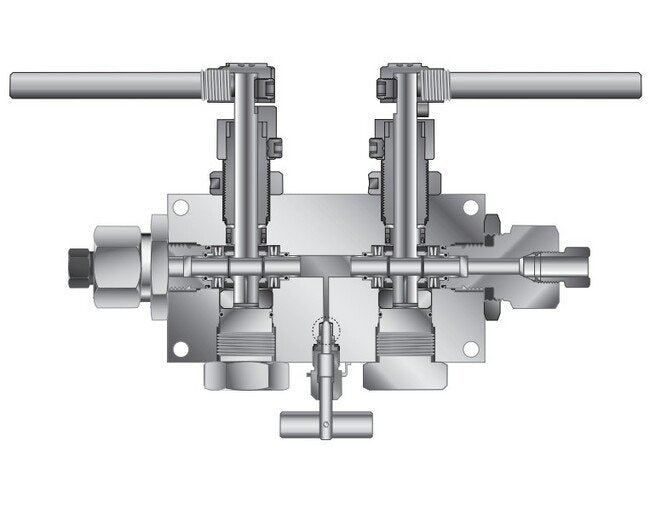

The Parker MAB Double Block and Bleed Ball Valves from the MPI™ MAB Series are expertly engineered to meet the most demanding industry requirements. With a MAWP of 15000 psi and temperature range up to 500°F, these valves offer exceptional performance for quarter and half-turn media shut-off applications. The one-piece trunnion style ball design and re-torqueable PEEK™ seat glands ensure long-lasting durability, while the low-friction stem seal enhances cycle life. With options for stainless steel or 2507 Super Duplex material and various port configurations, these valves provide unparalleled reliability for severe service applications.
Product Specifications

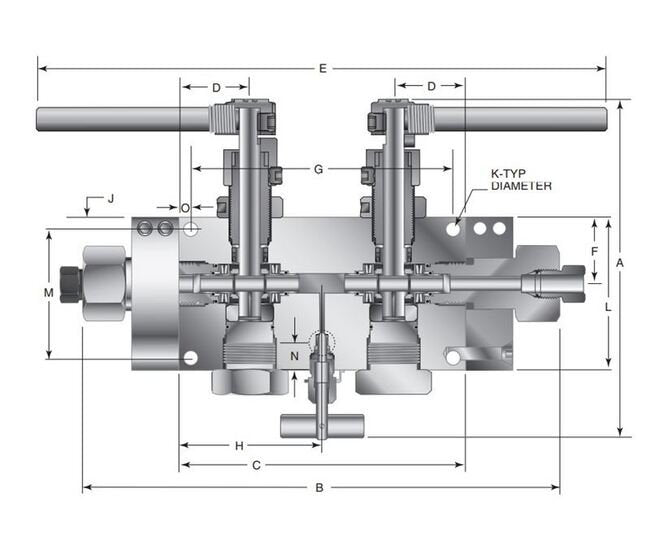

Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
1/4 MPI™
Dimensions Cv
.34
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.13 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
