Parker MAB Series 2 Way Ball Valves
Parker MAB Series 2 Way Ball Valves
SKU:VAL-5ff350
Enhance your industrial operations with the Parker MAB Series 2 Way Ball Valves, engineered for durability and performance in high-pressure environments.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Parker MAB Series 2 Way Ball Valves
$129.99
Quantity: 1
Claim Your Seller Account
Parker MAB Series 2 Way Ball Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAB Series 2 Way Ball Valves are expertly engineered for manual, pneumatic, and electrically actuated operations in challenging industrial environments. With a robust design capable of handling pressures up to 15,000 psi, these valves feature a single-piece trunnion style ball and re-torqueable seats, ensuring optimal performance in severe service applications. The valves offer versatile end connector designs to cater to specific customer needs, while the inclusion of one-piece trunnion style ball/stem design, PEEK™ Seat Glands, and low-friction graphite filled PTFE seals guarantee durability, efficiency, and extended cycle life. From full port flow paths to Viton™ Fluoroelastomer/FKM o-rings, these valves deliver reliable, high-performance solutions for critical industrial processes.
Ready to Grow Without Cash Flow Constraints?

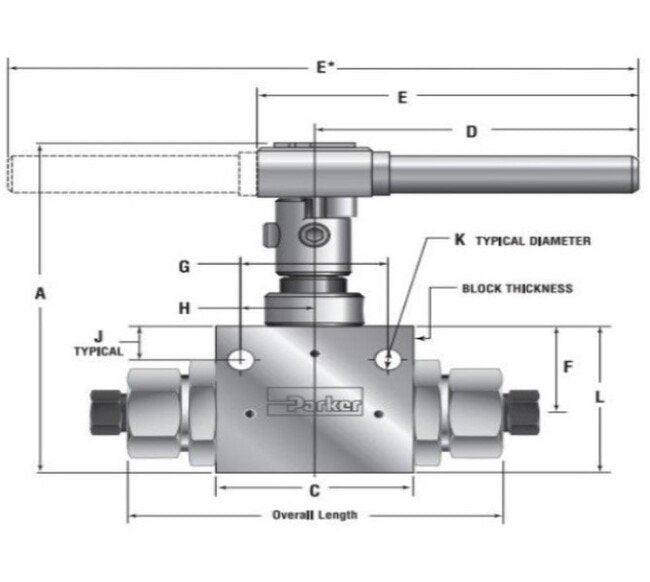

Product Specifications
Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
1.51 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
5.34 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S
