Parker MAB Series 2 Way Ball Valves
Parker MAB Series 2 Way Ball Valves
SKU:VAL-c9e008
Reliable Parker MAB Series 2-Way Ball Valves for high-pressure media control up to 15,000 psi. Designed for durability and efficiency in severe service conditions.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Parker MAB Series 2 Way Ball Valves
$299.99
Quantity: 1
Claim Your Seller Account
Parker MAB Series 2 Way Ball Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAB Series 2 Way Ball Valves offer reliable manual, pneumatic, and electric actuation for quarter and half-turn media shutoff or switching applications up to 15,000 psi. Featuring a single-piece trunnion style ball design and re-torqueable seats, these valves excel in severe service conditions. The full port flow path minimizes pressure drop, ensuring efficient operation. With a temperature range from 0°F to 400°F, expandable to 500°F, along with Viton™ Fluoroelastomer o-rings and low-friction stem seals, these valves guarantee durability and performance. The Parker MAB Series is ideal for industrial and institutional applications requiring precision and high pressure capabilities.
Ready to Grow Without Cash Flow Constraints?

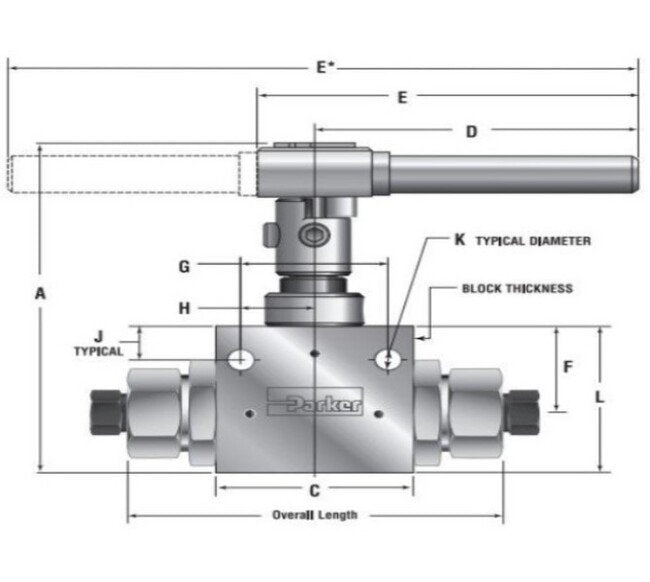

Product Specifications
Dimensions A
4.99 in
Dimensions Block Thickness
1.38 in
Dimensions C
3.00 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
5.20 in
Dimensions D
4.99 in
Dimensions E
5.45 in
Dimensions F
1.38 in
Dimensions G
2.00 in
Dimensions H
1.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
2.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.38 in
Dimensions Orifice Size
3/8 in
Dimensions Overall Length
6.27 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B6S-2507
