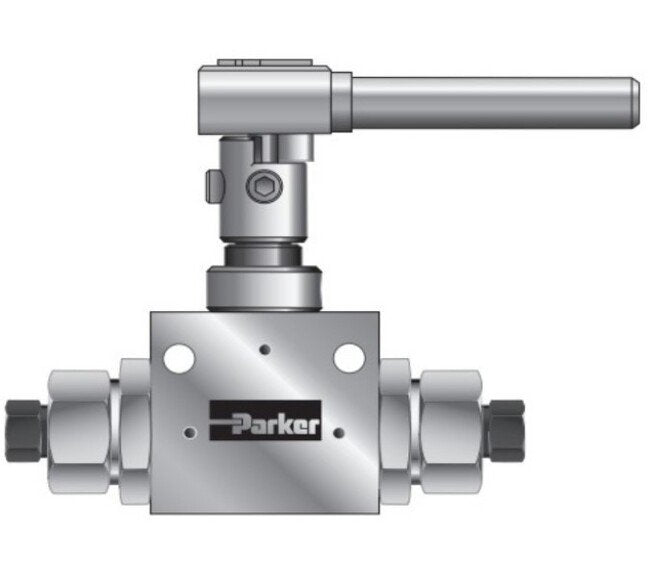

Parker MAB Series 2 Way Ball Valves - High-Pressure Valves
Parker MAB Series 2 Way Ball Valves - High-Pressure Valves
SKU:VAL-73e8d5
Reliable Parker MAB Series 2 Way Ball Valves for up to 15,000 psi, ideal for severe service applications. Temperature range 0°F to 500°F.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Parker MAB Series 2 Way Ball Valves - High-Pressure Valves
$89.99
Quantity: 1
Claim Your Seller Account
Parker MAB Series 2 Way Ball Valves - High-Pressure Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAB Series 2 Way Ball Valves are expertly crafted for manual, pneumatic, and electric applications, offering reliable quarter and half-turn shutoff up to 15,000 psi. With a robust single-piece trunnion ball design and re-torqueable seats, these valves excel in severe service environments. Featuring versatile end connectors, enhanced by a full port flow path design to minimize pressure drop, these valves ensure maximum performance. With temperature capabilities ranging from 0°F to 500°F and low friction stem seals for increased cycle life, the MAB Series guarantees durability and efficiency, making it an ideal choice for critical applications.
Ready to Grow Without Cash Flow Constraints?

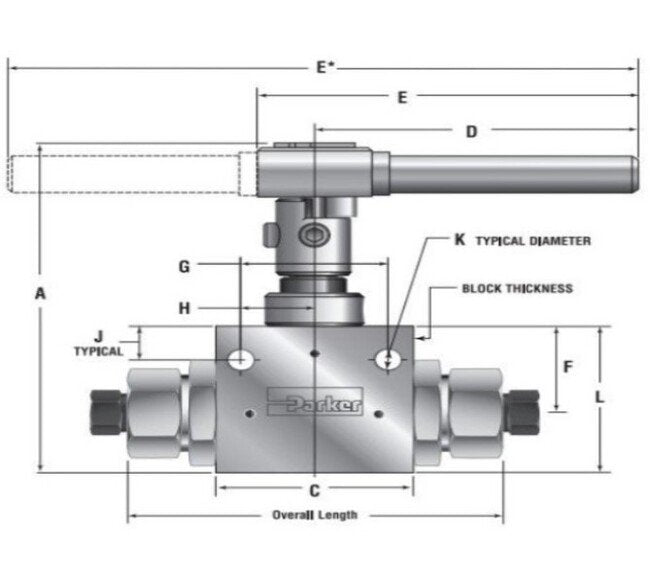

Product Specifications
Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
1/4 MPI™
Dimensions Cv
.25 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.13 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
4.19 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S
