Parker MAB Series 2 Way Ball Valves - MPI™ Ball Valves & Actuators
Parker MAB Series 2 Way Ball Valves - MPI™ Ball Valves & Actuators
SKU:VAL-f83687
Parker MAB Series 2 Way Ball Valves: Up to 15000 psi, durable design, low torque, broad temperature range. Ideal for severe service applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Parker MAB Series 2 Way Ball Valves - MPI™ Ball Valves & Actuators
$149.99
Quantity: 1
Claim Your Seller Account
Parker MAB Series 2 Way Ball Valves - MPI™ Ball Valves & Actuators
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

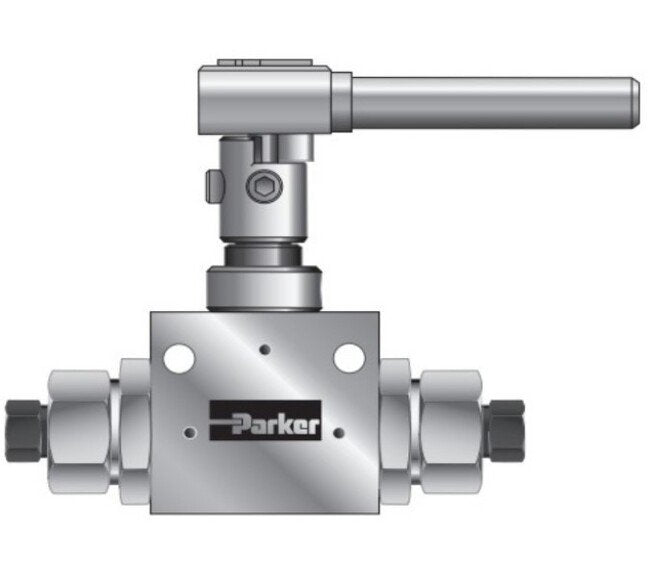

Experience superior performance with Parker MAB Series 2 Way Ball Valves designed for up to 15000 psi applications. Featuring a one-piece trunnion ball design, re-torqueable seats, and full port flow path that ensures minimal pressure drop. With materials like CW 316 Stainless Steel and options for 2507 Super Duplex, these valves offer durability and reliability. The low friction stem seal enhances cycle life, while Viton™ Fluoroelastomer o-rings ensure optimal performance across temperatures ranging from 0°F to 400°F. Ideal for severe service applications, these ball valves deliver precision and efficiency for your mechanical systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

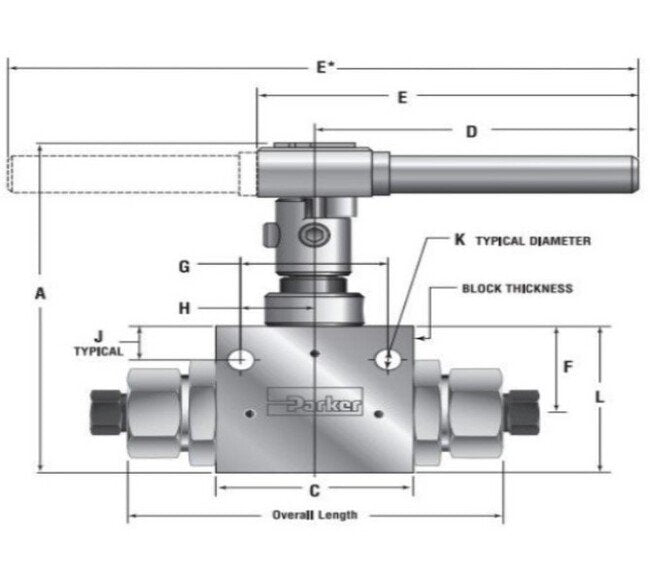

Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
3/8 MPI™
Dimensions Cv
1.51 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
4.19 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S
