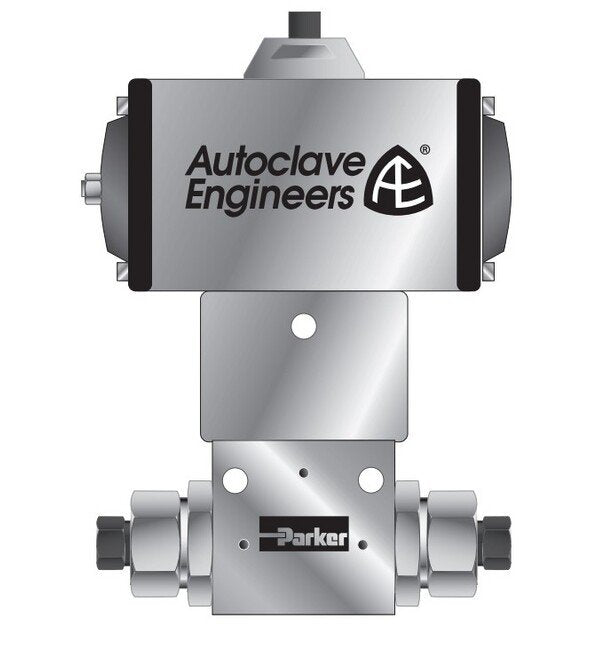

Parker MAB Series Pneumatic Actuators
Parker MAB Series Pneumatic Actuators
SKU:VAL-b76cf0
Automate operations seamlessly with Parker MAB Series Pneumatic Actuators, ensuring reliable performance and precise control in diverse applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Parker MAB Series Pneumatic Actuators
$199.99
Quantity: 1
Claim Your Seller Account
Parker MAB Series Pneumatic Actuators
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAB Series Actuators offer superior performance with pneumatic operators designed for automated or remote operation. With options for air-to-open/spring-to-close, air-to-close/spring-to-open, and double-acting functionalities, these actuators ensure reliable and trouble-free operation. Featuring an expanded temperature range, corrosion-resistant housing, and available limit switches, these actuators are ideal for various applications including laboratories, chemical research, and control panels. Designed for precision and durability, these actuators meet stringent industry standards for quality and performance.

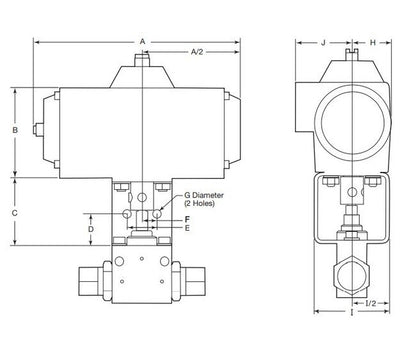

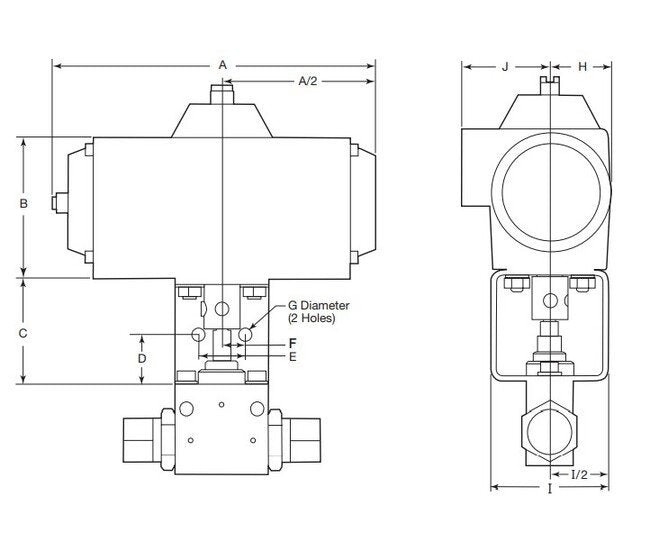

Product Specifications
Dimensions A
6.85 in
Dimensions Air Usage
18.1 in²
Dimensions B
3.20 in
Dimensions C
3.00 in
Dimensions D
1.50 in
Dimensions E
1.00 in
Dimensions F
.50 in
Dimensions G
.28 in
Dimensions H
1.30 in
Dimensions I
3.00 in
Dimensions J
1.88 in
Dimensions Turn Time
1.0 sec
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Air-to-open/spring-to-close (FC)Air-to-close/spring-to-open (FO) Air-to-open and close (double acting) (AD)Position Indication - Standard, Limit Switches optionalExpanded Temperature Range, -40 to 500°F with Silicone Seals availableStandard anodized aluminum housingStainless steel housing for corrosive applications available.Optional epoxy coated housing available
