Parker MAC and MACB Check Valves
Parker MAC and MACB Check Valves
SKU:VAL-b21660
Enhance flow control with Parker's MAC & MACB Check Valves, designed for reliability and precision in diverse applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves
$189.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

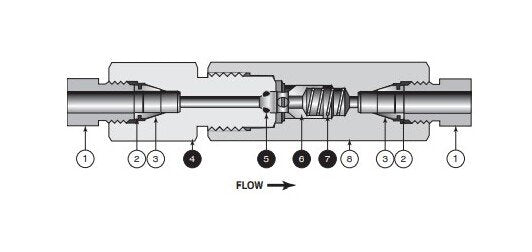

Parker's MAC and MACB Check Valves offer reliable unidirectional flow control solutions for a wide range of applications. The MACB series features a ball check valve design, ensuring tight shut-off when leak-tight closure is not essential. With an all-metal construction, these valves can operate at temperatures up to 1000°F, providing exceptional durability and performance. On the other hand, the MAC series, equipped with an O-ring check valve, delivers precise control for both liquids and gases, guaranteeing tight shut-off when needed. These valves are designed for maximum efficiency, with the ability to handle high differential pressures and maintain consistent performance under varying conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

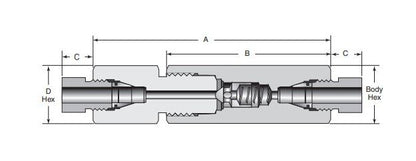

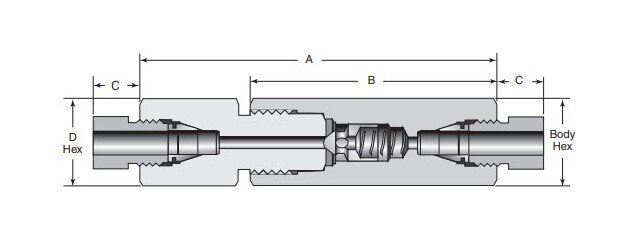

Dimensions A
7.05 in
Dimensions B
5.13 in
Dimensions Body Hex
1 3/4 in
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D Hex
1 3/8 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
4.70
Dimensions Repair Kits
R12MACB
Dimensions Tubing Od
3/4
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
