The Parker MAC and MACB Check Valves are essential components for ensuring unidirectional flow and leak-tight shut-off in high-pressure systems. The MACB series, featuring Ball Check Valves, offers reliable prevention of reverse flow with an all-metal construction suitable for up to 1000°F. Meanwhile, the MAC series, incorporating O-Ring Check Valves, delivers tight shut-off for liquids and gases thanks to its precise design and high cracking pressure tolerance. These valves are designed for maximum performance and durability in critical applications where safety and efficiency are paramount.
Product Specifications

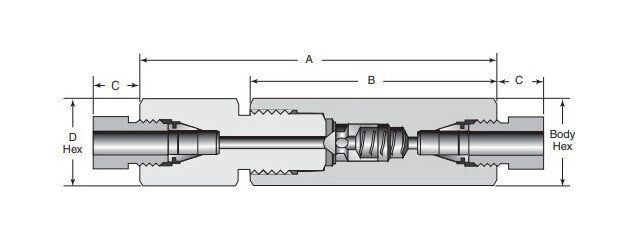

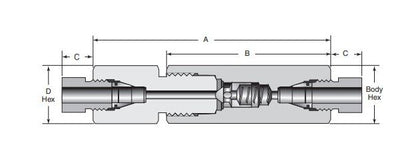

Dimensions A
4.40 in
Dimensions B
3.06 in
Dimensions Body Hex
1 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D Hex
15/16 in
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.84
Dimensions Repair Kits
R6MAC
Dimensions Tubing Od
3/8
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
