Parker MAC and MACB Check Valves 1/4 MPI™, 15000 psi
Parker MAC and MACB Check Valves 1/4 MPI™, 15000 psi
SKU:VAL-c55f0c
Reliable unidirectional flow control valves for liquids and gases in high-pressure systems. MACB & MAC series offer leak-tight shut-off and in-line seating without chatter.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves 1/4 MPI™, 15000 psi
$99.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves 1/4 MPI™, 15000 psi
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

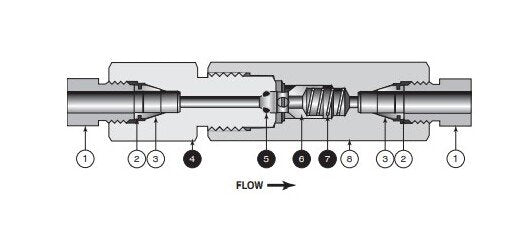

The Parker MAC and MACB Check Valves offer reliable unidirectional flow control for liquids and gases in high-pressure environments. The MACB series features an all-metal design suitable for temperatures up to 1000°F, ensuring leak-tight shut-off when needed. On the other hand, the MAC series boasts a tight shut-off with an O-Ring design for enhanced reliability. These valves guarantee positive, in-line seating without chatter, making them ideal for applications requiring precise flow control and minimal pressure drop.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

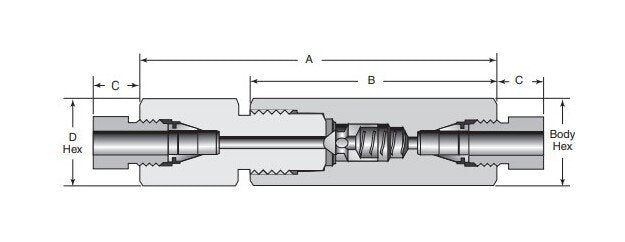

Dimensions A
3.80 in
Dimensions B
2.63 in
Dimensions Body Hex
13/16 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D Hex
13/16 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.28
Dimensions Repair Kits
R4MACB-2507
Dimensions Tubing Od
1/4
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
