Parker MAC and MACB Check Valves
Parker MAC and MACB Check Valves
SKU:VAL-093bc9
Prevent reverse flow with Parker MAC and MACB Check Valves, offering superior reliability and performance in demanding applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves
$349.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

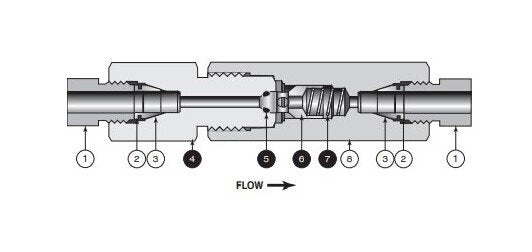

The Parker MAC and MACB Check Valves are precision-engineered solutions designed to prevent reverse flow and ensure leak-tight shut-off where necessary. The MACB series features an all-metal construction, suitable for temperatures up to 1000°F, with an integrated ball and poppet design for reliable, chatter-free operation. On the other hand, the MAC series offers unidirectional flow and tight shut-off, perfect for applications requiring high reliability and performance. With options for low temperature usage and specialized materials like 2507 Super Duplex, these valves provide versatile solutions for various industrial needs.
Product Specifications

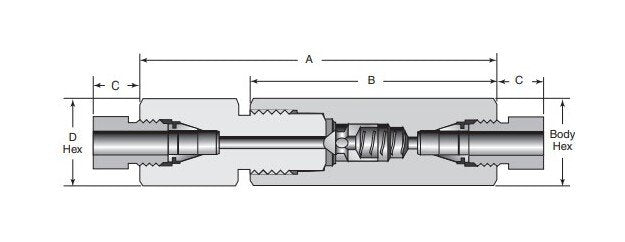

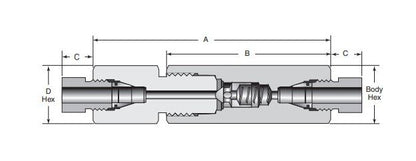

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R9MACB
Dimensions Tubing Od
9/16
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
