Parker MAC and MACB Check Valves
Parker MAC and MACB Check Valves
SKU:VAL-260cfb
Reliable unidirectional flow control valves for industrial use with high and low temperature compatibility.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves
$59.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

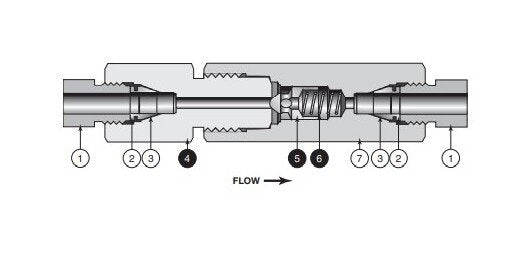

Designed for reliable unidirectional flow control, Parker's MAC and MACB Series Check Valves deliver superior performance for both high and low temperature applications. The MACB Ball Check Valve ensures leak-tight shut-off is not mandatory, with an all-metal construction suitable for temperatures up to 1000°F. The MAC O-Ring Check Valve provides tight shut-off for liquids and gases, offering high reliability and unidirectional flow. These valves feature an integral design for positive, in-line seating and minimal pressure drop, meeting the demands of industrial applications with precision and efficiency.
Product Specifications

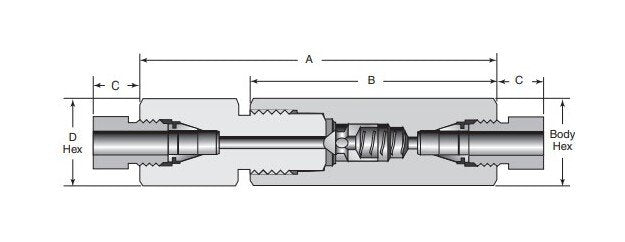

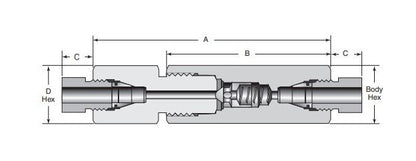

Dimensions A
8.71 in
Dimensions B
6.25 in
Dimensions Body Hex
2 1/8 in
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D Hex
1 7/8 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
7.40
Dimensions Repair Kits
R16MAC
Dimensions Tubing Od
1
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
