Parker MAC and MACB Check Valves
Parker MAC and MACB Check Valves
SKU:VAL-7c27da
Precision-engineered MAC and MACB Check Valves by Parker for reliable and efficient flow control in high-temperature environments.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves
$99.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

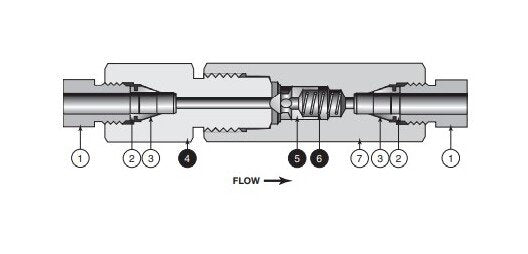

The Parker MAC and MACB Check Valves are precision-engineered to ensure reliable and efficient operation in a wide range of applications. The MACB series features an all-metal design, capable of withstanding temperatures up to 1000°F, with a unique ball and poppet integral design for secure in-line seating. On the other hand, the MAC series offers unidirectional flow and tight shut-off for both liquids and gases, guaranteeing high reliability even at high pressures. These valves are ideal for applications where preventing reverse flow is critical, making them a top choice for industrial and institutional buyers seeking top-notch performance and durability.
Product Specifications

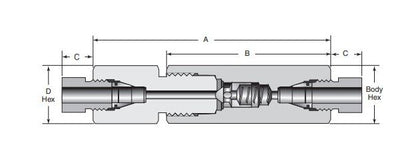

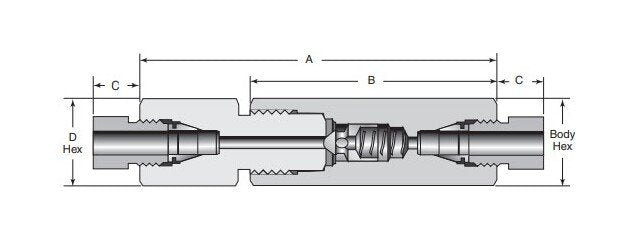

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R9MAC
Dimensions Tubing Od
9/16
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
