Parker MAC and MACB Check Valves
Parker MAC and MACB Check Valves
SKU:VAL-f0aa04
Reliable MAC and MACB Check Valves for precise flow control in extreme conditions. Meet high-temperature and low-temperature requirements with ease.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves
$199.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

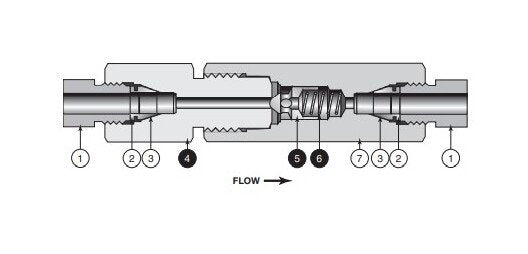

The Parker MAC and MACB Check Valves are engineered for precise flow control and reliable shut-off in demanding applications. The MACB series features a Ball Check Valve design, ideal for preventing reverse flow in high-temperature environments up to 1000°F. Its all-metal components ensure durability, while the integrated ball and poppet design guarantees a secure, chatter-free seal. On the other hand, the MAC series O-Ring Check Valve provides unidirectional flow and tight shut-off for liquids and gases, offering consistent performance even at temperatures as low as -423°F when equipped with the appropriate options. Both series meet stringent industry standards for quality and performance, making them the go-to choice for industrial and institutional users.
Product Specifications

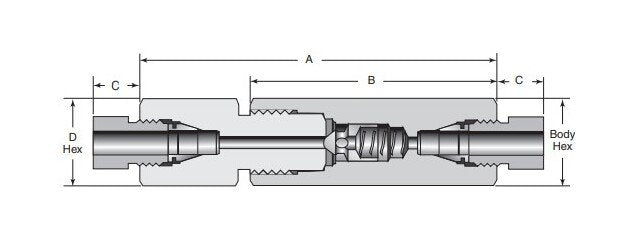

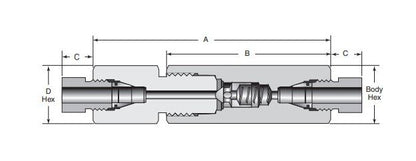

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R9MAC-2507
Dimensions Tubing Od
9/16
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
