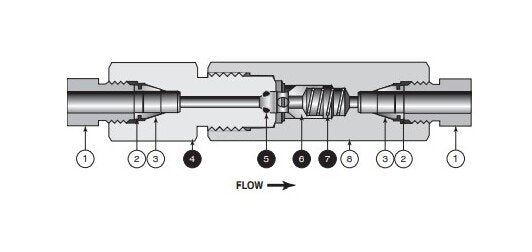

Parker MAC and MACB Check Valves are essential components for preventing reverse flow in fluid systems. The MACB series features an all-metal design, enabling operations at temperatures up to 1000°F, with a reliable ball and poppet construction ensuring leak-tight shut-off. On the other hand, the MAC series provides unidirectional flow and tight shut-off for liquids and gases, offering high reliability even in demanding conditions. These valves are built for precision, durability, and superior performance, making them ideal for a wide range of applications.

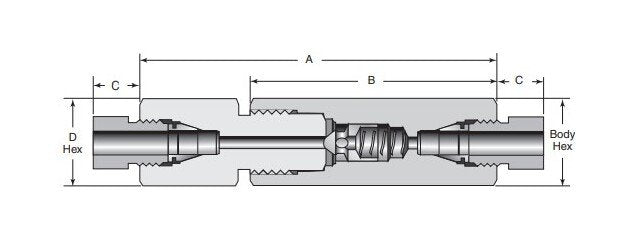

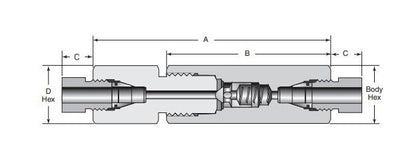

Product Specifications
Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R9MACB-2507
Dimensions Tubing Od
9/16
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
