Parker MAC and MACB Check Valves
Parker MAC and MACB Check Valves
SKU:VAL-91e70a
Reliable Parker MAC and MACB Check Valves for precise flow control and leak-tight shut-off, ensuring operational safety and efficiency.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves
$199.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

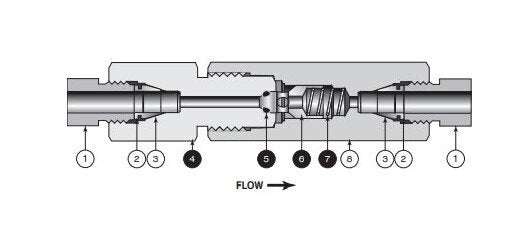

The Parker MAC and MACB Check Valves are reliable solutions for preventing reverse flow in various applications. The MACB series features an all-metal design, capable of operating at up to 1000°F, ensuring leak-tight shut-off when needed. The MAC series, with its O-Ring Check Valve, offers unidirectional flow with tight shut-off for both liquids and gases. These valves are designed for high reliability, with the ability to shut off when the pressure drops below the specified cracking pressure. With options for specialized temperature ranges and materials like 2507 Super Duplex, these valves provide durability and consistent performance in demanding environments.
Product Specifications

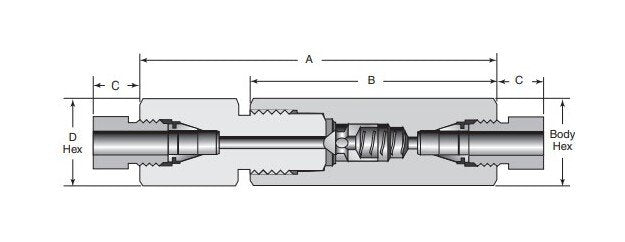

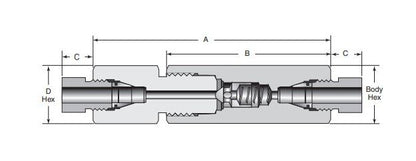

Dimensions A
7.05 in
Dimensions B
5.13 in
Dimensions Body Hex
1 3/4 in
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D Hex
1 3/8 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
4.70
Dimensions Repair Kits
R12MACB-2507
Dimensions Tubing Od
3/4
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
