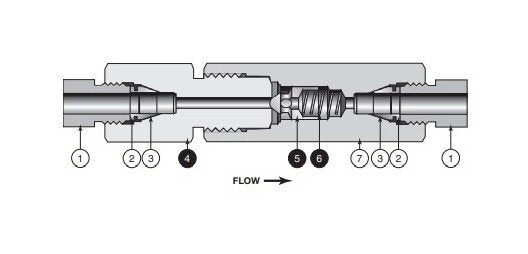

The Parker MAC and MACB Check Valves are designed to provide reliable unidirectional flow control and prevent reverse flow in applications where leak-tight shut-off is not mandatory. The MACB series features an all-metal construction, allowing for high-temperature usage up to 1000°F, with an integral ball and poppet design for positive, in-line seating. On the other hand, the MAC series offers tight shut-off for liquids and gases, ensuring high reliability with a cracking pressure of 20 psi. Both series come with optional temperature variants to suit extreme conditions, making them versatile solutions for various industrial settings.
Product Specifications

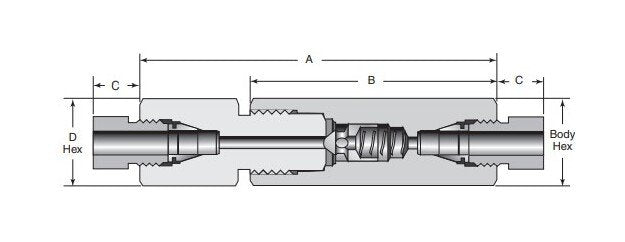

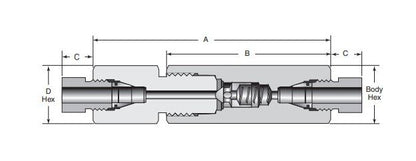

Dimensions A
7.05 in
Dimensions B
5.13 in
Dimensions Body Hex
1 3/4 in
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D Hex
1 3/8 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
4.70
Dimensions Repair Kits
R12MAC-2507
Dimensions Tubing Od
3/4
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
