Parker MAC and MACB Check Valves - MPI™ Specialty Valves and Filters
Parker MAC and MACB Check Valves - MPI™ Specialty Valves and Filters
SKU:VAL-28a050
Reliable MAC and MACB Check Valves with all-metal components for leak-tight shut-off and unidirectional flow, ensuring high reliability in a wide temperature range.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves - MPI™ Specialty Valves and Filters
$99.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves - MPI™ Specialty Valves and Filters
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

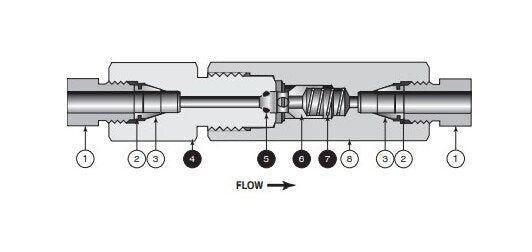

The Parker MACB Ball Check Valve offers reliable prevention of reverse flow with leak-tight shut-off capabilities. Constructed with all-metal components, this valve functions up to 1000°F. Featuring an integral ball and poppet design for secure in-line seating, it ensures consistent operation. The Parker MAC O-Ring Check Valve provides unidirectional flow and tight shut-off, ideal for handling liquids and gases with high reliability. With a cracking pressure of 20 psi, this valve guarantees efficient performance. Both valves offer varying temperature ranges, from -110°F to 400°F, meeting a wide range of operational needs.

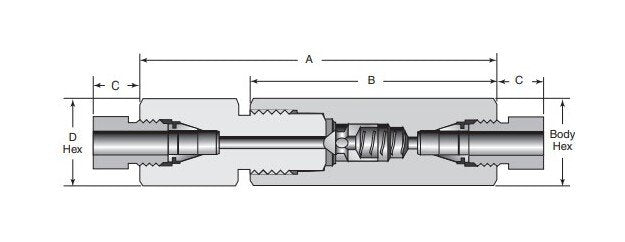

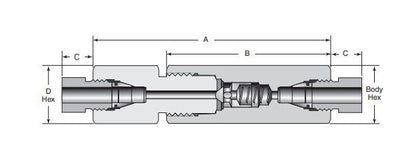

Product Specifications
Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R8MACB
Dimensions Tubing Od
1/2
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
