Parker MAC and MACB Check Valves - MPI Specialty Valves and Filters
Parker MAC and MACB Check Valves - MPI Specialty Valves and Filters
SKU:VAL-f679c6
Reliable MAC and MACB Check Valves for unidirectional flow and leak-tight shut-off, suitable for high temperatures, and diverse material options.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves - MPI Specialty Valves and Filters
$129.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves - MPI Specialty Valves and Filters
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Parker's MAC and MACB Check Valves from the MPI Specialty Valves and Filters category offer reliable prevention of reverse flow with leak-tight shut-off options. The MACB series features an all-metal design suitable for high temperatures up to 1000°F, ensuring positive seating without chatter. On the other hand, the MAC series provides unidirectional flow and tight shut-off for liquids and gases, maintaining high reliability under various conditions. With options for different temperature ranges and materials like Super Duplex, these valves are versatile and durable for a wide range of applications, ensuring optimal performance and safety.
Product Specifications

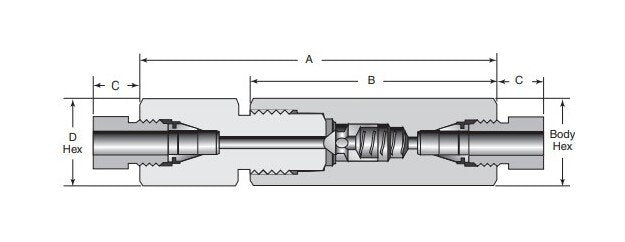

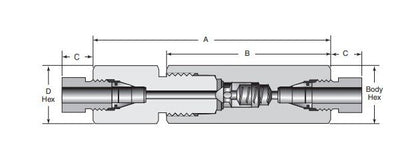

Dimensions A
3.80 in
Dimensions B
2.63 in
Dimensions Body Hex
13/16 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D Hex
13/16 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.28
Dimensions Repair Kits
R4MACB
Dimensions Tubing Od
1/4
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
