Parker MAC/MACB Check Valves
Parker MAC/MACB Check Valves
SKU:VAL-b663de
Ensure seamless flow control with Parker MAC/MACB Check Valves, offering high reliability and precision in preventing reverse flow.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Parker MAC/MACB Check Valves
$249.99
Quantity: 1
Claim Your Seller Account
Parker MAC/MACB Check Valves
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

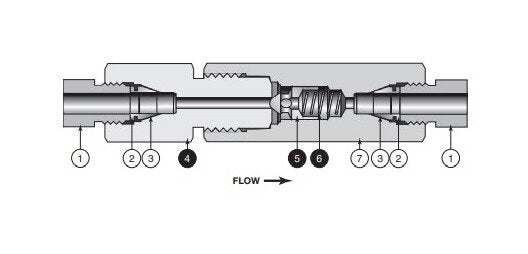

The Parker MAC and MACB Check Valves are essential components for preventing reverse flow in systems where leak-tight shut-off is not required. The MACB series features a Ball Check Valve design with all-metal components that can withstand temperatures up to 1000°F, ensuring reliable performance. On the other hand, the MAC series, with its O-Ring Check Valve design, offers unidirectional flow and tight shut-off suitable for a wide range of liquids and gases. These valves are engineered for high reliability, with features such as in-line seating without 'chatter' and minimal pressure drop. Whether it's the axial flow design of the poppet or the positive shut-off mechanism, these valves guarantee precision and efficiency.
Product Specifications

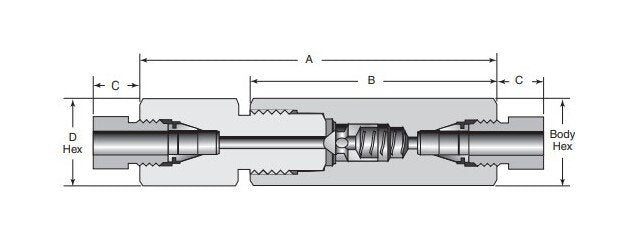

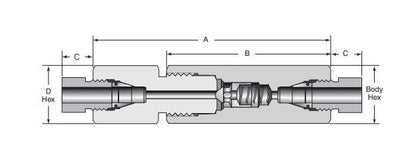

Dimensions A
3.80 in
Dimensions B
2.63 in
Dimensions Body Hex
13/16 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D Hex
13/16 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.28
Dimensions Repair Kits
R4MAC
Dimensions Tubing Od
1/4
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
