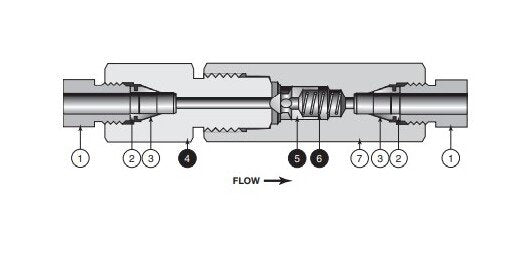

The Parker MAC and MACB Check Valves are expertly designed to prevent reverse flow efficiently without compromising on performance. The MACB series features an all-metal construction with a high-temperature tolerance of up to 1000°F, providing reliable shut-off when needed. On the other hand, the MAC series offers unidirectional flow and tight shut-off for fluids and gases with exceptional reliability. Both series ensure positive, in-line seating without any 'chatter,' making them ideal for critical applications where leak-tight shut-off is essential. Meeting stringent industry standards, these valves are a trusted choice for institutional and government procurement.
Product Specifications

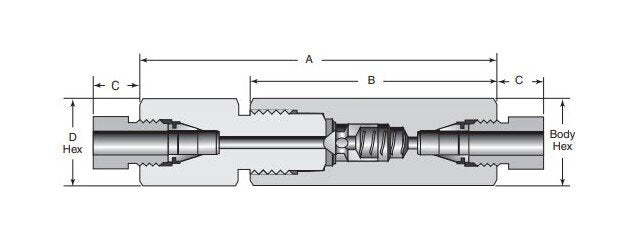

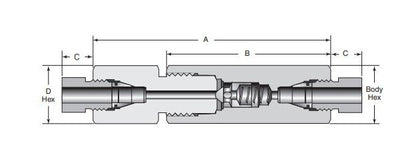

Dimensions A
7.05 in
Dimensions B
5.13 in
Dimensions Body Hex
1 3/4 in
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D Hex
1 3/8 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
4.70
Dimensions Repair Kits
R12MAC
Dimensions Tubing Od
3/4
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
