Parker MAF Series Dual Disc Line Filter
Parker MAF Series Dual Disc Line Filter
SKU:VAL-929b75
Enhance industrial processes with Parker's Dual Disc Line Filter for efficient contaminant trapping and easy maintenance. Explore options for Super Duplex configurations.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Parker MAF Series Dual Disc Line Filter
$399.99
Quantity: 1
Claim Your Seller Account
Parker MAF Series Dual Disc Line Filter
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

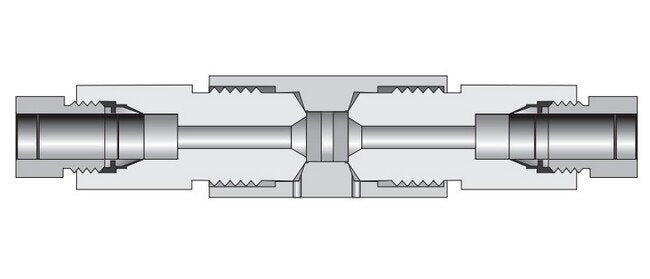

The Parker MAF Series Dual Disc Line Filter is essential for industrial, chemical processing, aerospace, and nuclear applications. Featuring a dual-disc design that traps large contaminants with upstream filtering, it prevents clogging of downstream elements. With easy element replacement and options for 2507 Super Duplex configurations, this filter ensures efficient and reliable filtration in high-pressure systems.
Product Specifications

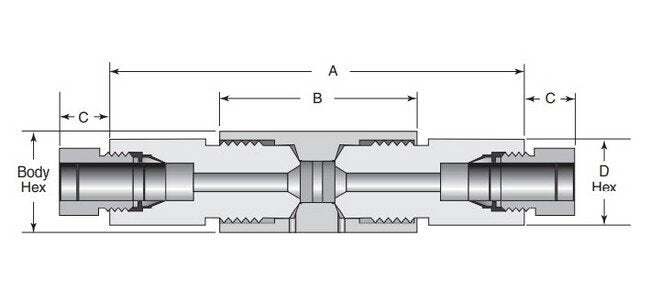

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
10/35
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
