Parker MAF Series Dual Disc Line Filter - 1/2" MPITM, 15000 psi
Parker MAF Series Dual Disc Line Filter - 1/2" MPITM, 15000 psi
SKU:VAL-1e4048
The Parker MAF Series Dual Disc Line Filter offers exceptional filtration for industrial applications with dual-disc design and high-pressure capacity.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Parker MAF Series Dual Disc Line Filter - 1/2" MPITM, 15000 psi
$349.99
Quantity: 1
Claim Your Seller Account
Parker MAF Series Dual Disc Line Filter - 1/2" MPITM, 15000 psi
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

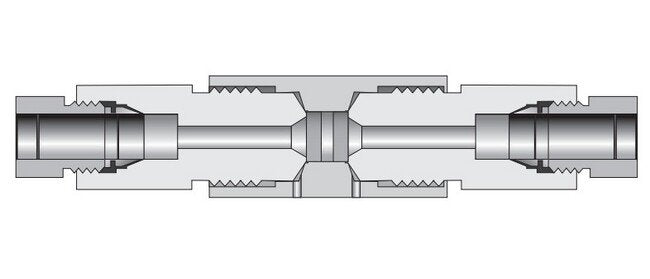

The Parker MAF Series Dual Disc Line Filter is a premium solution for industrial, chemical processing, aerospace, and nuclear applications. Featuring a dual-disc design, it effectively traps large contaminant particles to prevent clogging. With a micron size of 5/10, high-pressure capacity of 15000 psi, and easy element replacement, this filter ensures efficient and reliable filtration performance.
Product Specifications

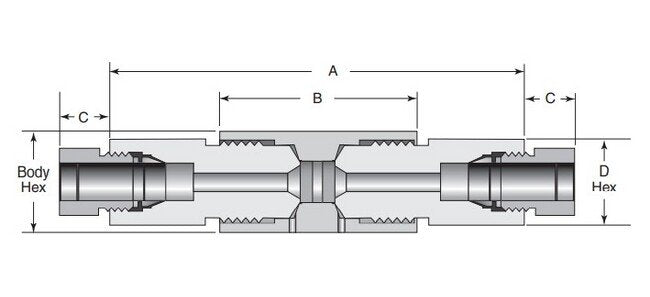

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
5/10
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/2
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
