Parker MAF Series Dual Disc Line Filter - 1/2" Tubing O.D. - 10/35 Micron Size
Parker MAF Series Dual Disc Line Filter - 1/2" Tubing O.D. - 10/35 Micron Size
SKU:VAL-19decf
Efficient Parker MAF Series Dual Disc Line Filter for industrial applications. Dual-disc design traps contaminants and ensures reliable performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Parker MAF Series Dual Disc Line Filter - 1/2" Tubing O.D. - 10/35 Micron Size
$349.99
Quantity: 1
Claim Your Seller Account
Parker MAF Series Dual Disc Line Filter - 1/2" Tubing O.D. - 10/35 Micron Size
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

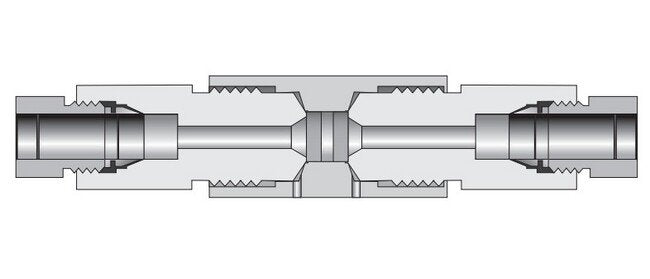

The Parker MAF Series Dual Disc Line Filter is a versatile filtration solution suitable for a wide range of applications in industrial, chemical processing, aerospace, and nuclear industries. Featuring a dual-disc design, this filter efficiently traps large contaminants upstream, preventing clogs in the finer downstream elements. The easy-to-replace filter elements ensure consistent filtration performance. With a pressure rating of 15000 psi and a durable construction, this filter guarantees reliable operation in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

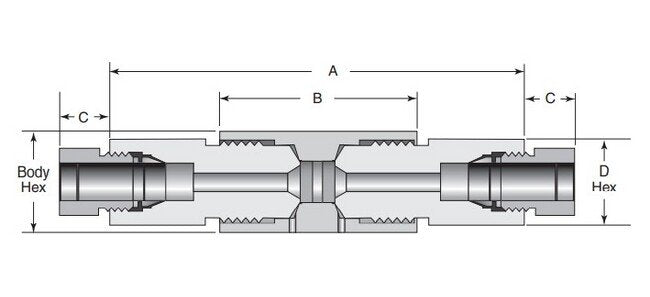

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
10/35
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/2
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
