Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter

Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter

VAL-d07abe

Parker MAF Series Dual Disc Line Filter - Reliable filtration for industrial applications.

$245.99
$245.99
Sale

Initiate Order

Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter

Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter

$245.99

Quantity: 1

Claim Your Seller Account

Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter

Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter

$245.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

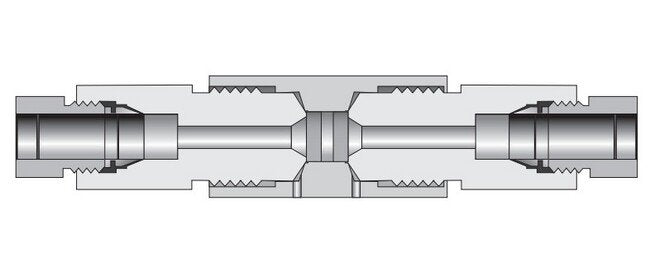

The Parker MAF Series Dual Disc Line Filter is an essential component for industrial, chemical processing, aerospace, and nuclear applications. Featuring a dual-disc design, it efficiently traps large contaminants before they can clog downstream elements. Easily replaceable filter elements and robust construction ensure reliable performance. This filter meets stringent industry standards for durability, efficiency, and precision filtration.

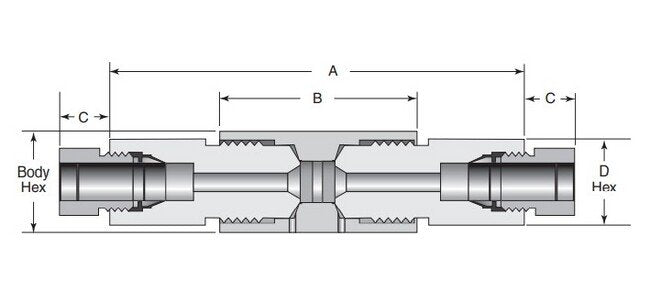

Product Specifications

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
5/10
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
