Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter System
Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter System
SKU:VAL-65d0ff
Parker MAF Series Dual Disc Line Filter: Optimal filtration for industrial and aerospace applications. Dual-disc design for superior contaminant removal.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter System
$329.99
Quantity: 1
Claim Your Seller Account
Parker MAF Series Dual Disc Line Filter - Industrial Grade Filter System
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

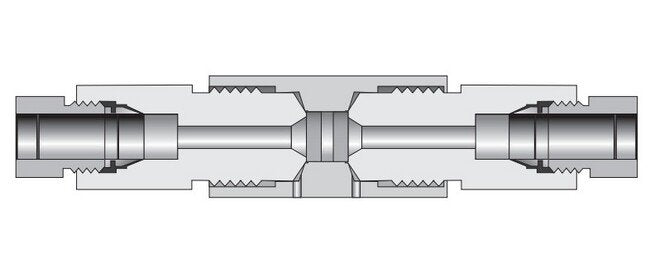

The Parker MAF Series Dual Disc Line Filter is a top choice for industrial, chemical processing, aerospace, and nuclear applications. Its innovative dual-disc design ensures efficient filtration by trapping large contaminant particles before they reach downstream elements. Featuring easy-to-replace filter elements and compatibility with various tubing sizes and materials, this filter excels in maintaining system cleanliness and performance while reducing clogging risks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

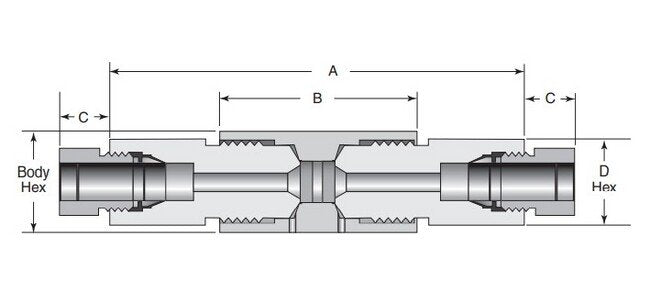

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
35/65
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/2
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
