Parker MAFC Cup Line Filter
Parker MAFC Cup Line Filter
SKU:VAL-e9cdc7
Maximize flow rates and filter surface area with Parker's MAFC Cup Line Filter, ideal for high-pressure industrial systems.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Parker MAFC Cup Line Filter
$259.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Cup Line Filter
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAFC Series Cup Line Filter is a high-flow solution crucial for high-pressure industrial systems, delivering exceptional filter surface area and efficiency. Ideal for industrial and chemical processing applications, this filter boasts a cup design providing up to six times more effective filter area than conventional disc-type units. With quick and easy filter element replacement, this filter ensures minimal downtime and optimal system performance.
Product Specifications

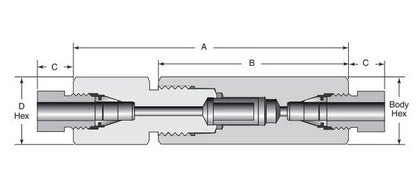

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions Cover Gland Torque
100 ft·lb
Dimensions Cup Filter Pn
207A-2916
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
35
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/2
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
