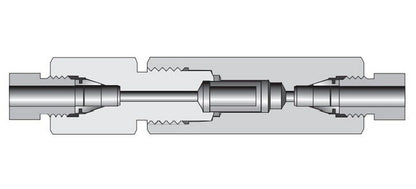

The Parker MAFC Cup Line Filter from the MPI™ Specialty Valves and Filters series is a high-flow solution ideal for industrial and chemical processing applications. With its innovative cup design, this filter provides up to six times more effective filter area compared to disc-type units, ensuring maximum filtration efficiency. Featuring a Micron Size of 65 and a Pressure rating of 15000 psi, this filter offers both high flow rates and superior filter surface area. Its easy-to-replace filter elements and compatibility with 2507 Super Duplex option make it a reliable choice for high-pressure systems.
Product Specifications

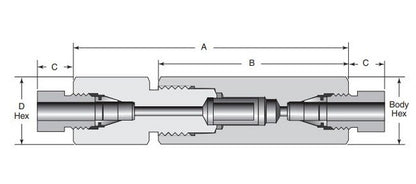

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
100 ft·lb
Dimensions Cup Filter Pn
208A-2916
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
65
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
