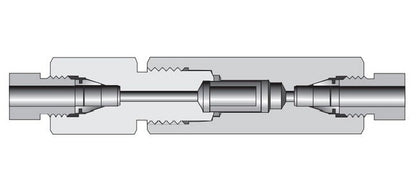

The Parker MAFC Series Cup Line Filter is ideal for high-pressure systems with demanding flow rate needs. Featuring a cup design that provides up to six times more filter area than disc filters, this filter ensures maximum filtration efficiency. Easily replaceable filter elements and compatibility with various micron sizes make it versatile for industrial and chemical processing applications. Meeting stringent industry standards, the filter guarantees reliable performance and superior durability.
Product Specifications

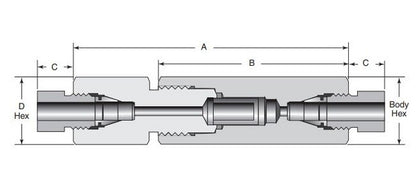

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
100 ft·lb
Dimensions Cup Filter Pn
207A-2916
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
35
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
