Parker MAFC Series Cup Line Filter 5 Micron - 9/16" MPI™ Conn.
Parker MAFC Series Cup Line Filter 5 Micron - 9/16" MPI™ Conn.
SKU:VAL-1e2bb4
High-flow Cup Line Filter with 5 micron size, ideal for industrial and chemical processing. Ensures maximum filtration efficiency and easy element replacement.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Parker MAFC Series Cup Line Filter 5 Micron - 9/16" MPI™ Conn.
$349.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Series Cup Line Filter 5 Micron - 9/16" MPI™ Conn.
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAFC Series Cup Line Filter is a high-flow solution designed for high-pressure systems in industrial and chemical processing fields. With six times more effective filter area than disc-type units, this filter offers maximum filtration efficiency. Easily replaceable filter elements ensure continuous performance. Featuring a 5 micron size and 9/16" MPI™ connection, this filter meets stringent standards for pressure, dimensions, and material composition. Ideal for applications requiring reliability, durability, and exceptional filtration performance.
Product Specifications

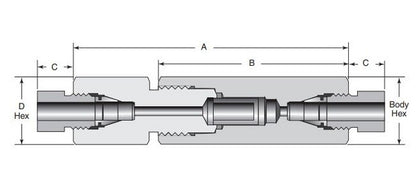

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
100 ft·lb
Dimensions Cup Filter Pn
205A-2916
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
5
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
