Parker MAFC Series Cup Line Filter, High Flow 35 Micron, 1/4" MPI™ Connection
Parker MAFC Series Cup Line Filter, High Flow 35 Micron, 1/4" MPI™ Connection
SKU:VAL-3f7762
Enhance high-pressure systems with Parker MAFC Series Cup Line Filter - high-flow, efficient, and easy maintenance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Parker MAFC Series Cup Line Filter, High Flow 35 Micron, 1/4" MPI™ Connection
$249.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Series Cup Line Filter, High Flow 35 Micron, 1/4" MPI™ Connection
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAFC Series Cup Line Filter is a high-flow solution designed for high-pressure systems in industrial and chemical processing. With an innovative cup design providing six times more effective filter area than disc-type units, this filter ensures maximum efficiency. Easily replaceable filter elements and compatibility with 2507 Super Duplex option make it versatile and low-maintenance. Ideal for institutions seeking reliable filtration in demanding environments.

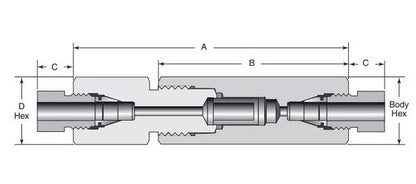

Product Specifications
Dimensions A
3.80 in
Dimensions B
2.63 in
Dimensions Body Hex
13/16 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions Cover Gland Torque
40 ft·lb
Dimensions Cup Filter Pn
203A-2916
Dimensions D Hex
13/16 in
Dimensions Micron Size
35
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/4
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
